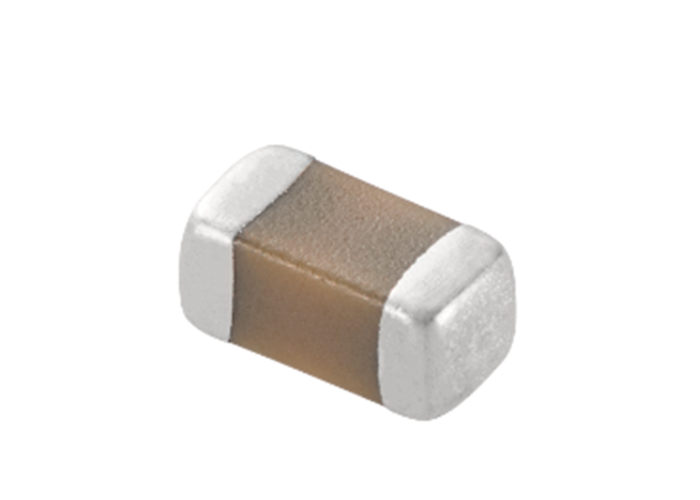

GRM158R61E476MA01D Integrated Circuit Chip Multilayer Ceramic Capacitors
The GRM158R61E476MA01D is a general-purpose multilayer ceramic capacitor (MLCC) from the GRM series, specifically designed for use in consumer electronics and industrial equipment. Leveraging mature multilayer ceramic sintering processes and precision surface-mount packaging technology, this device combines compact size, high stability, low loss and high reliability.
Product Model Analysis
The model number adheres to standardized naming conventions, with each segment corresponding to specific product parameters:
- GRM: Core series of general-purpose surface-mount multilayer ceramic capacitors
- 158: 0402 imperial package (1.0 * 0.5 mm)
- R6: X6R ceramic dielectric material with low temperature drift
- 1E: Rated DC voltage of 25V
- 476: Nominal capacitance of 47μF
- MA: Capacitance tolerance of ±20%
- 01D: Standard tape-and-reel surface-mount packaging
Core Parameters
- Package size: 0402 (1.0 * 0.5 * 0.5 mm)
- Nominal capacitance: 47 μF
- Rated voltage: DC 25 V
- Capacitance tolerance: ±20%
- Dielectric material: X6R
- Operating temperature: -55°C to +85°C
- Compliance: Lead-free, RoHS compliant
Core Advantages
- High capacitance in compact form: 47μF in 0402 package maximizes space utilization
- Excellent temperature stability: Minimal capacitance fluctuation across -55°C to +85°C range
- Outstanding high-frequency performance: Ultra-low ESR and ESL for effective noise reduction
- High reliability: Precision multi-layer sintering process ensures long service life
- Mass production suitability: Standard tape-and-reel packaging for automated SMT assembly
Applications
Consumer Electronics:
Smartphones, tablets, smart wearables, Bluetooth headphones, power banks, smart home controllers, and portable digital devices for power supply filtering, voltage stabilization, and signal coupling.
Industrial Equipment:
PLCs, industrial sensors, variable frequency drives, industrial communication modules, automation control circuit boards, and industrial power supply equipment for stable operation in complex electromagnetic environments.
