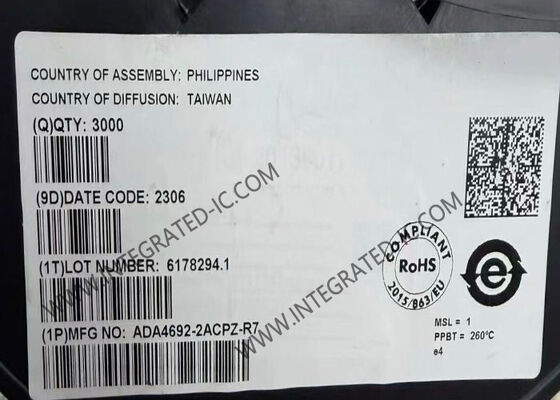

ADA4692-2ACPZ Operational Amplifier 3.6MHz Low Noise Rail-to-Rail Output Op Amp

The ADA4692-2ACPZ is a dual rail-to-rail output, single-supply amplifier featuring low power consumption, wide bandwidth, and low noise characteristics. This combination of performance and features makes it ideal for a wide variety of applications including audio systems, filters, photodiode amplifiers, and charge amplifiers.

Additional applications include portable consumer audio players where low noise and low distortion provide high gain and slew rate response over the audio band at low power consumption.

• Low power: 180 μA typical
• Very low input bias currents: 0.5 pA typical
• Low noise: 16 nV/√Hz typical
• 3.6 MHz bandwidth
• Offset voltage: 500 μV typical
• Low offset voltage drift: 4 μV/°C maximum
• Low distortion: 0.003% THD + N
• 2.7 V to 5 V single supply or ±1.35 V to ±2.5 V dual supply
• Available in very small 2 mm × 2 mm LFCSP packages

• Photodiode amplifiers
• Sensor amplifiers
• Portable medical and instrumentation
• Portable audio: MP3s, PDAs, and smartphones
• Communications
• Low-side current sense
• ADC driver
• Active filters
• Sample-and-hold

A: Yes, all products are original, new original import is our purpose.

A: We are ISO 9001:2015 Certified Company and member of ERAI.

A: Yes, we support sample order and small order. Sample cost is different according to your order or project.

A: We use express to ship, such as DHL, Fedex, UPS, TNT, EMS. We can also use your suggested forwarder. Products will be in good packing and ensure the safety and we are responsible to product damage to your order.

A: We can ship stock parts within 5 working days. If without stock, we will confirm lead time for you based on your order quantity.
