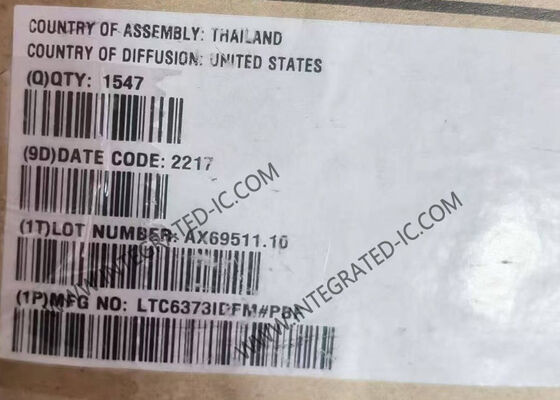

LTC6373IDFM 36V Fully-Differential Programmable-Gain Instrumentation Amplifier with 25pA Input Bias Current

LTC6373IDFM 36V Fully-Differential Programmable-Gain Instrumentation Amplifier with 25pA Input Bias Current
LTC6373IDFM 36V Fully-Differential Programmable-Gain Instrumentation Amplifier with 25pA Input Bias Current

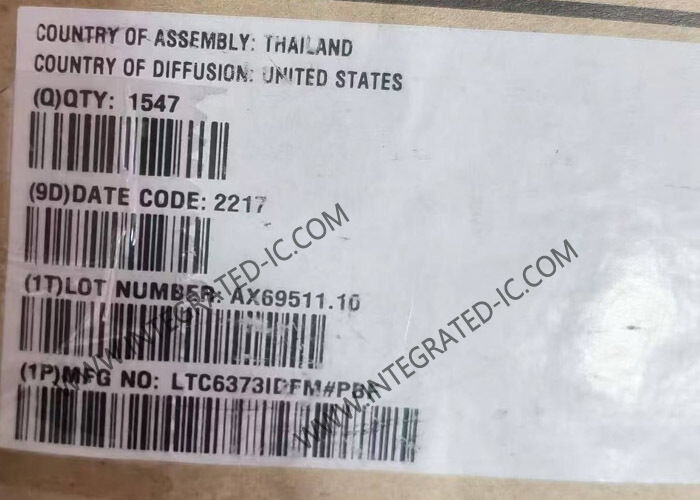

Large Image :  LTC6373IDFM 36V Fully-Differential Programmable-Gain Instrumentation Amplifier with 25pA Input Bias Current

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: LTC6373IDFM
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: PDFN-12
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

LTC6373IDFM 36V Fully-Differential Programmable-Gain Instrumentation Amplifier with 25pA Input Bias Current

Description
Part Number: LTC6373IDFM Slew Rate: 12V/µs
-3db Bandwidth: 7.5 MHz Current - Input Bias: 2 PA
Voltage - Input Offset: 92 µV Current - Supply: 4.4mA

LTC6373IDFM Integrated Circuit Chip 36V Fully-Differential Programmable-Gain Instrumentation Amplifier With 25pA Input Bias Current
Product Overview

The LTC6373IDFM is a precision instrumentation amplifier featuring fully differential outputs and a closely-matched internal resistor network that delivers exceptional CMRR, offset voltage, gain error, gain drift, and gain nonlinearity performance.

Technical Specifications
Specification Value
Number of Channels 1 Channel
3 dB Bandwidth 7.5 MHz
SR - Slew Rate 12 V/μs
CMRR - Common Mode Rejection Ratio 103 dB
Ib - Input Bias Current 2 pA
Vos - Input Offset Voltage 92 μV
Supply Voltage - Max 36 V
Supply Voltage - Min 9 V
Operating Supply Current 4.4 mA
Minimum Operating Temperature -40°C
Maximum Operating Temperature +85°C
Key Features
  • Pin-Programmable Gains: G = 0.25, 0.5, 1, 2, 4, 8, 16V/V + Shutdown
  • Fully Differential Outputs
  • Gain Error: 0.015% (Max)
  • Gain Error Drift: 1ppm/°C (Max)
  • CMRR: 103dB (Min), G = 16
  • Input Bias Current: 25pA (Max)
  • Input Offset Voltage: 92μV (Max), G = 16
  • Input Offset Voltage Drift: 1.7μV/°C (Max), G = 16
  • -3dB Bandwidth: 4MHz, G = 16
  • Input Noise Density: 8nV/√Hz, G = 16
  • Slew Rate: 12V/μs, G = 16
  • Adjustable Output Common Mode Voltage
  • Quiescent Supply Current: 4.4mA
  • Supply Voltage Range: ±4.5V to ±18V
  • -40°C to +105°C Specified Temperature Range
  • Small 12-Lead 4mm * 4mm DFN (LFCSP) Package
Applications
  • Data Acquisition Systems
  • Biomedical Instrumentation
  • Test and Measurement Equipment
  • Differential ADC Drivers
  • Single-Ended-to-Differential Conversion
  • Multiplexed Applications
