ACS733KLATR-40AB-T 1MHz Bandwidth 40A Current Sensing Galvanically Isolated Hall Effect Sensor IC SOIC-16

ACS733KLATR-40AB-T 1MHz Bandwidth 40A Current Sensing Galvanically Isolated Hall Effect Sensor IC SOIC-16
ACS733KLATR-40AB-T 1MHz Bandwidth 40A Current Sensing Galvanically Isolated Hall Effect Sensor IC SOIC-16

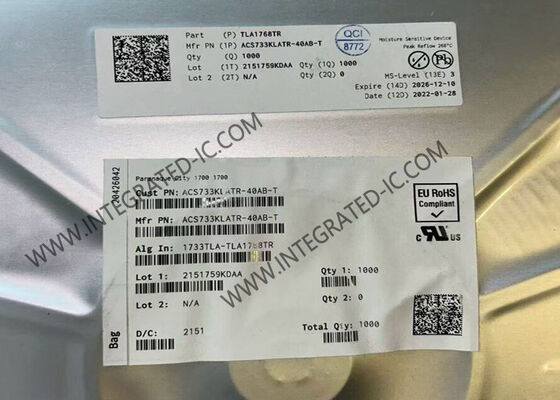

Large Image :  ACS733KLATR-40AB-T 1MHz Bandwidth 40A Current Sensing Galvanically Isolated Hall Effect Sensor IC SOIC-16

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: ACS733KLATR-40AB-T
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: SOIC-16​
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

ACS733KLATR-40AB-T 1MHz Bandwidth 40A Current Sensing Galvanically Isolated Hall Effect Sensor IC SOIC-16

Description
Part Number: ACS733KLATR-40AB-T Sensor Type: Hall Effect, Differential
Current - Sensing: 40A Frequency: 1MHz
Voltage - Supply: 3.14V ~ 3.46V Operating Temperature: -40°C ~ 125°C

ACS733KLATR-40AB-T Sensor IC 1MHz Bandwidth Galvanically Isolated Current Sensor IC SOIC-16

The ACS733KLATR-40AB-T is a high-bandwidth galvanically isolated current sensor with overcurrent fault detection. This sensor provides 1MHz bandwidth current sensing with user-configurable overcurrent fault detection and galvanic isolation, designed specifically for 3.3V operation.

Specifications
Parameter Value
Current Rating 40 A
Sensor Type Current Sense
Response Time 0.2 μs
Accuracy 4%
Frequency Range 1 MHz
Operating Supply Voltage 3.14 V to 3.46 V
Output Type Analog
Package / Case SOICW-16
Dimensions 10.3 mm (Length) × 2.65 mm (Height)
Operating Temperature -40 ℃ to +125 ℃
Key Features
  • High bandwidth: 1 MHz analog output
  • Differential Hall sensing rejects common-mode fields
  • High-isolation SOIC16 wide body package provides galvanic isolation for high-voltage applications
  • Industry-leading noise performance with improved bandwidth
  • UL60950-1 (ed. 2) certified
  • Dielectric Strength Voltage = 3.6 kVRMS
  • Basic Isolation Working Voltage = 616 VRMS
  • Fast and externally configurable overcurrent fault detection
  • 1 mΩ primary conductor resistance for low power loss
  • Options for 3.3 V and 5 V single supply operation
  • Output voltage proportional to AC and DC current
  • Factory-trimmed sensitivity and quiescent output voltage
  • Nearly zero magnetic hysteresis
  • Ratiometric output from supply voltage
Applications
  • DC-DC Converter
  • Server Power
  • Residential Micro/String Solar Inverter
  • On-board Charger
  • DC EV Charging
