LTM4622IY Integrated Circuit Chip Dual 2.5A Output Ultrathin 1.82mm Package DC/DC μModule Regulator with Wide 3.6V to 20V Input Range

LTM4622IY Integrated Circuit Chip Dual 2.5A Output Ultrathin 1.82mm Package DC/DC μModule Regulator with Wide 3.6V to 20V Input Range
LTM4622IY Integrated Circuit Chip Dual 2.5A Output Ultrathin 1.82mm Package DC/DC μModule Regulator with Wide 3.6V to 20V Input Range

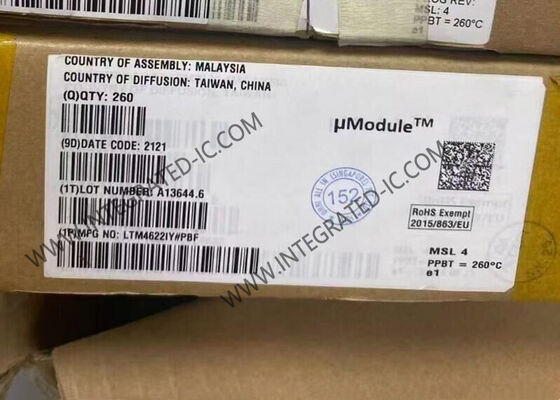

Large Image :  LTM4622IY Integrated Circuit Chip Dual 2.5A Output Ultrathin 1.82mm Package DC/DC μModule Regulator with Wide 3.6V to 20V Input Range

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: LTM4622IY
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: 25-BGA
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

LTM4622IY Integrated Circuit Chip Dual 2.5A Output Ultrathin 1.82mm Package DC/DC μModule Regulator with Wide 3.6V to 20V Input Range

Description
Part Number: LTM4622IY Voltage - Input (Min): 3.6V
Voltage - Input (Max): 20V Voltage - Output 1: 0.6 ~ 5.5V
Voltage - Output 2: 0.6 ~ 5.5V 0.6 ~ 5.5V: 2.5A, 2.5A

LTM4622IY Integrated Circuit Chip Dual Ultrathin 2.5A Step-Down DC/DC μModule Regulator
Product Overview

LTM4622IY is a complete dual 2.5A step-down switching mode μModule® (powermodule) regulator in tiny ultrathin 6.25mm * 6.25mm * 1.82mm LGA and 6.25mm * 6.25mm * 2.42mm BGA packages. Included in the package are the switching controller, power FETs, inductor and support components. Operating over an input voltage range of 3.6V to 20V, the LTM4622IY supports an output voltage range of 0.6V to 5.5V, set by a single external resistor. Its high efficiency design delivers dual 2.5A continuous, 3A peak, output current. Only a few ceramic input and output capacitors are needed.

Technical Specifications
Output Voltage 600 mV to 5.5 V
Output Current 2.5 A
Number of Outputs 2 Output
Input Voltage - Min 3.1 V
Input Voltage - Max 20 V
Quiescent Current 45 uA
Switching Frequency 1 MHz
Minimum Operating Temperature -40 °C
Maximum Operating Temperature +125 °C
Input Voltage 3.1 V to 20 V
Load Regulation 0.2 %
Moisture Sensitive Yes
Operating Supply Current 11 mA
Unit Weight 5.163 g
Key Features
  • Complete Solution in <1cm²
  • Wide Input Voltage Range: 3.6V to 20V
  • 3.3V Input Compatible with VIN Tied to INTVCC
  • 0.6V to 5.5V Output Voltage
  • Dual 2.5A (3A Peak) or Single 5A Output Current
  • ±1.5% Maximum Total Output Voltage Regulation Error Over Load, Line and Temperature
  • Current Mode Control, Fast Transient Response
  • External Frequency Synchronization
  • Multiphase Parallelable with Current Sharing
  • Output Voltage Tracking and Soft-Start Capability
  • Selectable Burst Mode® Operation
  • Overvoltage Input and Overtemperature Protection
  • Power Good Indicators
  • 6.25mm * 6.25mm * 1.82mm LGA and 6.25mm * 6.25mm * 2.42mm BGA Packages
Applications
  • General Purpose Point of Load Conversion
  • Telecom, Networking and Industrial Equipment
  • Medical Diagnostic Equipment
  • Test and Debug Systems
