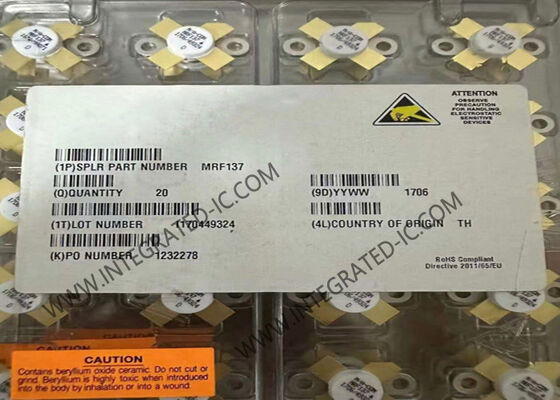

MRF137 N-Channel RF MOSFET Transistor with 30W Output Power, 400MHz Frequency, and 28V Voltage

MRF137 N-Channel RF MOSFET Transistor with 30W Output Power, 400MHz Frequency, and 28V Voltage
MRF137 N-Channel RF MOSFET Transistor with 30W Output Power, 400MHz Frequency, and 28V Voltage

Large Image :  MRF137 N-Channel RF MOSFET Transistor with 30W Output Power, 400MHz Frequency, and 28V Voltage

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: MRF137
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: 211-07-3
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

MRF137 N-Channel RF MOSFET Transistor with 30W Output Power, 400MHz Frequency, and 28V Voltage

Description
Part Number: MRF137 Configuration: N-Channel
Frequency: 150MHz ~ 400MHz Gain: 7.7dB ~ 16dB
Voltage - Test: 28 V Current Rating (Amps): 5A

MRF137 Integrated Circuit Chip N-Channel 5MHz To 400MHz 30W 28V RF MOSFET Transistors

MRF137 Integrated Circuit Chip N-Channel 5MHz To 400MHz 30W 28V RF MOSFET Transistors

MRF137 is an N-Channel 30W 28V Gain 13dB RF MOSFET Transistor designed for wideband large signal output and drive stages up to 400 MHz range.

Specifications
Parameter Value
Transistor Polarity N-Channel
Technology Si
Id - Continuous Drain Current 5 A
Vds - Drain-Source Breakdown Voltage 65 V
Operating Frequency 400 MHz
Gain 13 dB
Output Power 30 W
Minimum Operating Temperature -65°C
Maximum Operating Temperature +150°C
Pd - Power Dissipation 100 W
Vgs - Gate-Source Voltage ±40 V
Vgs th - Gate-Source Threshold Voltage 3 V
Unit Weight 12.088 g
Features
  • Guaranteed 28 V, 150 MHz Performance - Output power = 30 W Minimum Gain = 13 dB Efficiency -- 60% (Typ.)
  • 100% Test for Load Mismatch at all Phase Angles with 30:1 VSWR
  • Typical Performance at 400 MHz, 28 Vdc, 30 W output = 7.7 dB gain
  • Small and Large Signal Characterization
  • Excellent Thermal Stability, Ideally Suited for Class A Operation
  • Low Noise figure -- 1.5 dB (typ.) at 1.0 A, 150 MHz
  • Facilitates Manual Gain Control, ALC and Modulation Techniques
Applications
  • Aerospace and Defense
  • ISM
