LTC4364CDE-2 Integrated Circuit Chip 4V To 80V Wide-Voltage Surge Stopper With Integrates Ideal Diode Control For Automotive Applications

LTC4364CDE-2 Integrated Circuit Chip 4V To 80V Wide-Voltage Surge Stopper With Integrates Ideal Diode Control For Automotive Applications
LTC4364CDE-2 Integrated Circuit Chip 4V To 80V Wide-Voltage Surge Stopper With Integrates Ideal Diode Control For Automotive Applications

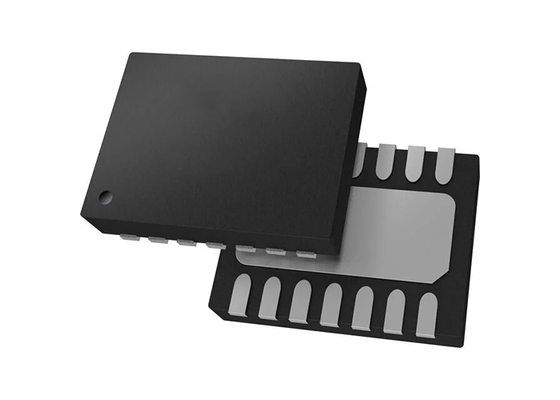

Large Image :  LTC4364CDE-2 Integrated Circuit Chip 4V To 80V Wide-Voltage Surge Stopper With Integrates Ideal Diode Control For Automotive Applications

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: LTC4364CDE-2
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: DFN-14
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 10000 Pieces per Day
Contact Now

LTC4364CDE-2 Integrated Circuit Chip 4V To 80V Wide-Voltage Surge Stopper With Integrates Ideal Diode Control For Automotive Applications

Description
Part Number: LTC4364CDE-2 Voltage - Working: 4 ~ 80V
Number Of Circuits: 1 Current Rating:: 750 UA
Minimum Operating Temperature:: 0 C Maximum Operating Temperature:: + 70 C

LTC4364CDE-2 Integrated Circuit Chip

4V to 80V Wide-Voltage Surge Stopper with Integrated Ideal Diode Control

Product Description

The LTC4364CDE-2 is a 4V to 80V wide-voltage surge suppression protection IC that integrates ideal diode control. It utilizes an external NMOS transistor to achieve active voltage clamping and features automatic retry upon fault (exclusive to the -2 variant). Housed in a compact 4×3mm 14DFN package, it is suitable for power supply protection applications within the compact chassis of humanoid robots.

Specifications
Parameter Value
Voltage Rating 4 VDC to 80 VDC
Current Rating 750 uA
Minimum Operating Temperature 0°C
Maximum Operating Temperature +70°C
For Use With Automotive, Avionics, Industrial
Height 0.75 mm
Length 4 mm
Width 3 mm
Unit Weight 1.095 g
Key Features
  • Wide Operating Voltage Range: 4V to 80V
  • Withstands Surges Over 80V with VCC Clamp
  • Adjustable Output Clamp Voltage
  • Ideal Diode Controller Holds Up Output Voltage During Input Brownouts
  • Reverse Input Protection to -40V
  • Reverse Output Protection to -20V
  • Overcurrent Protection
  • Low 10μA Shutdown Current at 12V
  • Adjustable Fault Timer
  • 0.1% Retry Duty Cycle During Faults
  • Available in 4mm x 3mm 14-Lead DFN, 16-Lead MSOP, and 16-Lead SO Packages
  • AEC-Q100 Qualified for Automotive Applications
Applications
  • Automotive/Avionic Surge Protection
  • Hot Swap/Live Insertion
  • Redundant Supply ORing
  • Output Port Protection
  • Humanoid Robots
