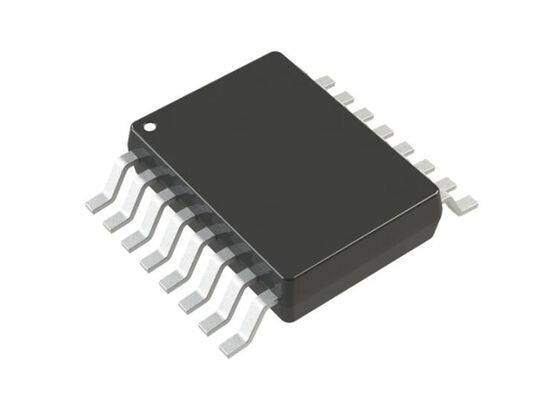

LTC7000ARMSE High-Side NMOS MOSFET Gate Driver IC with 3.5V to 135V Range for Humanoid Robots

LTC7000ARMSE High-Side NMOS MOSFET Gate Driver IC with 3.5V to 135V Range for Humanoid Robots
LTC7000ARMSE High-Side NMOS MOSFET Gate Driver IC with 3.5V to 135V Range for Humanoid Robots

Large Image :  LTC7000ARMSE High-Side NMOS MOSFET Gate Driver IC with 3.5V to 135V Range for Humanoid Robots

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: LTC7000ARMSE
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: MSOP-16
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

LTC7000ARMSE High-Side NMOS MOSFET Gate Driver IC with 3.5V to 135V Range for Humanoid Robots

Description
Part Number: LTC7000ARMSE Driven Configuration: High-Side
Voltage - Supply: 3.5V ~ 135V High Side Voltage - Max (Bootstrap): 150 V
Rise / Fall Time (Typ): 90ns, 40ns Operating Temperature: -40°C ~ 125°C (TJ)

LTC7000ARMSE Integrated Circuit Chip High Side NMOS Static Switch Driver IC For Humanoid Robots
Product Overview

LTC7000ARMSE is a high-speed high-side N-channel MOSFET gate driver, specially designed as servo power management chip for 24V/48V lithium battery powered humanoid robots. It supports wide input voltage range from 3.5V to 135V with absolute maximum 150V withstand voltage, fully compatible with high-voltage servo bus of biped robots.

Specifications
Product MOSFET Gate Drivers
Mounting Style SMD/SMT
Package / Case MSOP-16
Number of Drivers 1 Driver
Number of Outputs 1 Output
Supply Voltage - Min 3.5 V
Supply Voltage - Max 150 V
Configuration Non-Inverting
Rise Time 90 ns
Fall Time 40 ns
Minimum Operating Temperature -40 ℃
Maximum Operating Temperature +125 ℃
Features High Side
Logic Type CMOS
Operating Supply Current 250 uA
Key Features
  • Wide Operating VIN: 3.5V to 135V (150V Abs Max)
  • 1Ω Pull-Down, 2.2Ω Pull-Up for Fast Turn-On and Turn-Off Times with 35ns Propagation Delays
  • Internal Charge Pump for 100% Duty Cycle
  • Short-Circuit Protected
  • Adjustable Current Trip Threshold
  • Current Monitor Output
  • Automatic Restart Timer
  • Open-Drain Fault Flag
  • Adjustable Turn-On Slew Rate
  • Gate Driver Supply from 3.5V to 15V
  • Adjustable VIN Undervoltage and Overvoltage Lockouts
  • Adjustable Driver Supply VCC Undervoltage Lockout
  • Low Shutdown Current: 1μA
  • CMOS Compatible Input
  • Thermally Enhanced, High Voltage Capable 16-Lead MSOP Packages
Applications
  • Humanoid Robot
  • Static Switch Driver
  • Load and Supply Switch Driver
  • Electronic Valve Driver
  • High Frequency High Side Gate Driver
