LTC4364CS-2 Surge Stopper with Ideal Diode Controller 4V to 80V Operating Voltage Reverse Input Protection to -40V Automotive Grade

The LTC4364CS-2 is a single-channel surge suppressor with an ideal diode controller, operating at voltages between 4 and 80 V. It withstands surges of up to 80 V and provides protection against input reverse voltages of up to -40 V and output reverse voltages of up to -20 V.

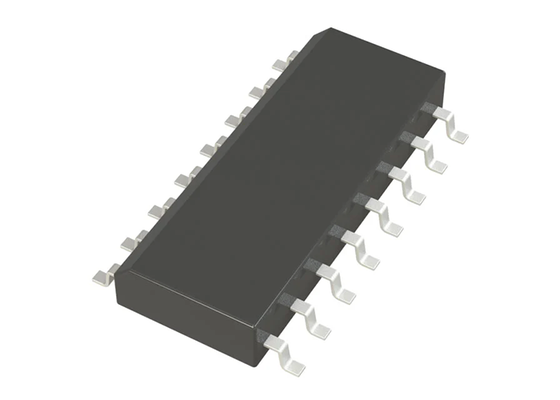

This device achieves near-zero voltage drop power supply via an external MOSFET, maintains output power during under-voltage conditions, and features adjustable fault timing and overcurrent shutdown with automatic restart following a fault with low duty cycle. Housed in a 16-SO surface-mount package, it is ideal for servo drives and main control power circuits in humanoid robots, suppressing voltage transients caused by motor start-stop cycles and cable disturbances.

• Wide Operating Voltage Range: 4V to 80V
• Withstands Surges Over 80V with VCC Clamp
• Adjustable Output Clamp Voltage
• Ideal Diode Controller Holds Up Output Voltage During Input Brownouts
• Reverse Input Protection to -40V
• Reverse Output Protection to -20V
• Overcurrent Protection
• Low 10μA Shutdown Current at 12V
• Adjustable Fault Timer
• 0.1% Retry Duty Cycle During Faults
• Available in 4mm x 3mm 14-Lead DFN, 16-Lead MSOP, and 16-Lead SO Packages
• AEC-Q100 Qualified for Automotive Applications

• Automotive/Avionic Surge Protection
• Hot Swap/Live Insertion
• Redundant Supply ORing
• Output Port Protection
• Humanoid Robots
