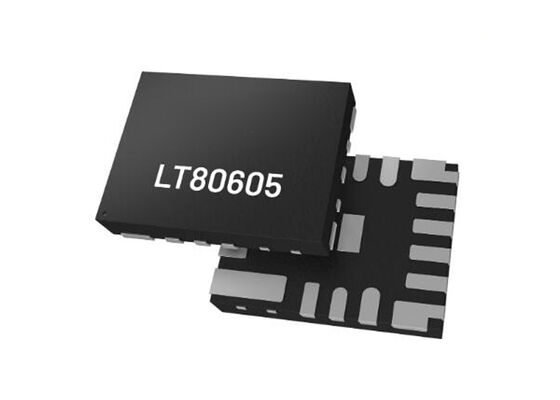

LT80605AAFOAH 5.5A Synchronous Buck Step-Down Regulator with 70V Transient-Input Tolerance and 9μA Quiescent Current for Humanoid Robots

LT80605AAFOAH is a 5.5A synchronous buck Silent Switcher regulator with a quiescent current of just 9μA. This point-of-load buck power supply chip is specifically designed for 48V lithium-ion battery systems in humanoid robots, providing clean, low-voltage power to the robot's main controller, vision system, IMU, and communication modules.

The LT80605AAFOAH features a SYNC/MODE pin that selects among Burst Mode, pulse skipping, or forced continuous mode (FCM), and also allows synchronization to an external clock. Soft-start and tracking functionality are accessed through the TR/SS pin.

• Silent Switcher® Architecture with ultralow EMI emissions
• High efficiency at high frequency: Up to 94.5% at 400kHz, 24VIN to 5VOUT
• Up to 93% efficiency at 1MHz, 24VIN to 5VOUT
• Pin selectable adjustable, fixed 3.3V and 5V output
• Ultralow quiescent current Burst Mode operation: 9μA IQ regulating 24VIN to 5VOUT
• On-the-fly mode change among Burst, Pulse Skip and Forced Continuous Mode
• Burst and Pulse Skipping modes for enhanced light-load efficiency
• Built-in output-voltage monitoring and die temperature monitoring with PG/TJ
• 99% duty-cycle operation
• 200kHz to 3MHz adjustable switching frequency with external clock synchronization
• 70V transient-input tolerant
• Internal compensation
• Programmable soft-start and tracking
• Built-in hiccup mode overload protection
• Safely tolerates inductor saturation in overload
• Small 17-lead 3mm × 4mm QFN package

• General purpose step-down conversion
• Automotive and industrial power supplies
• Humanoid robot power systems
