LTC4364IMS-1 Integrated Circuit Chip 4V to 80V Surge Stopper with Ideal Diode Controller for Humanoid Robots in MSOP-16 Package

LTC4364IMS-1 Integrated Circuit Chip 4V to 80V Surge Stopper with Ideal Diode Controller for Humanoid Robots in MSOP-16 Package
LTC4364IMS-1 Integrated Circuit Chip 4V to 80V Surge Stopper with Ideal Diode Controller for Humanoid Robots in MSOP-16 Package

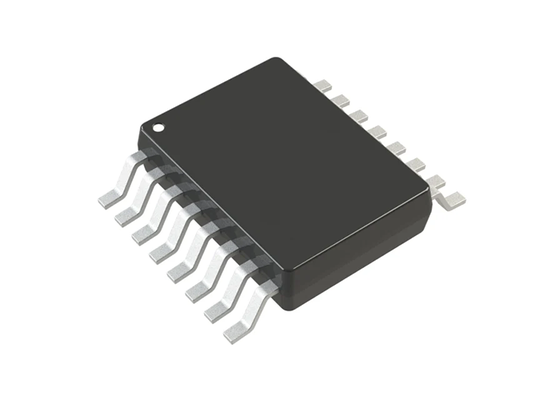

Large Image :  LTC4364IMS-1 Integrated Circuit Chip 4V to 80V Surge Stopper with Ideal Diode Controller for Humanoid Robots in MSOP-16 Package

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: LTC4364IMS-1
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: MSOP-16
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 10000 Pieces per Day
Contact Now

LTC4364IMS-1 Integrated Circuit Chip 4V to 80V Surge Stopper with Ideal Diode Controller for Humanoid Robots in MSOP-16 Package

Description
Part Number: LTC4364IMS-1 Voltage - Working: 4 ~ 80V
Number Of Circuits: 1 Unit Weight:: 100 Mg
Package: MSOP-16 Current Rating:: 750 UA

LTC4364IMS-1 Integrated Circuit Chip 4V To 80V Surge Stopper With Ideal Diode For Humanoid Robots
Product Description

LTC4364IMS-1 is a general-purpose surge suppressor in an MSOP16 package that integrates ideal diode control and is compatible with a wide supply voltage range of 4-80V. It actively clamps high-voltage surges and provides overvoltage, undervoltage and current-limiting protection, locking out the output following a fault.

When paired with an external MOSFET in place of a Schottky diode, it offers low conduction losses and -40V reverse-voltage protection. Suitable for battery-powered humanoid robots and multi-channel power supplies such as joint drives, it resolves voltage spikes and reverse current issues caused by motion start-stop cycles and cable disturbances, ensuring the stable operation of precision loads such as main controllers and servo motors.

Specifications
Parameter Value
Voltage Rating 4 VDC to 80 VDC
Current Rating 750 uA
Minimum Operating Temperature -40°C
Maximum Operating Temperature +85°C
For Use With Automotive, Avionics, Industrial
Height 0.86 mm
Length 4 mm
Width 3 mm
Unit Weight 100 mg
Features
  • Wide Operating Voltage Range: 4V to 80V
  • Withstands Surges Over 80V with VCC Clamp
  • Adjustable Output Clamp Voltage
  • Ideal Diode Controller Holds Up Output Voltage During Input Brownouts
  • Reverse Input Protection to -40V
  • Reverse Output Protection to -20V
  • Overcurrent Protection
  • Low 10μA Shutdown Current at 12V
  • Adjustable Fault Timer
  • 0.1% Retry Duty Cycle During Faults
  • Available in 4mm x 3mm 14-Lead DFN, 16-Lead MSOP, and 16-Lead SO Packages
  • AEC-Q100 Qualified for Automotive Applications
Applications
  • Automotive/Avionic Surge Protection
  • Hot Swap/Live Insertion
  • Redundant Supply ORing
  • Output Port Protection
  • Humanoid Robots
