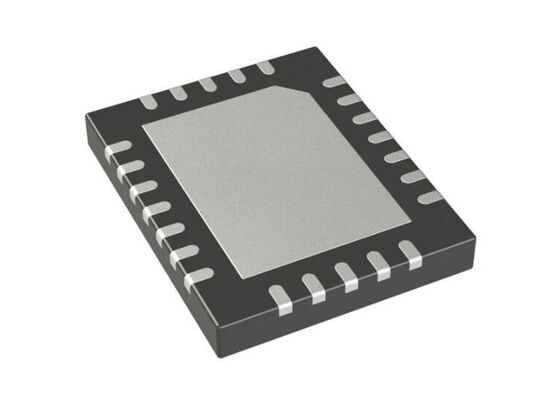

LTC7801EUFD 150V Synchronous Step-Down DC/DC Controller Integrated Circuit Chip for Humanoid Robots

LTC7801EUFD 150V Synchronous Step-Down DC/DC Controller Integrated Circuit Chip for Humanoid Robots
LTC7801EUFD 150V Synchronous Step-Down DC/DC Controller Integrated Circuit Chip for Humanoid Robots

Large Image :  LTC7801EUFD 150V Synchronous Step-Down DC/DC Controller Integrated Circuit Chip for Humanoid Robots

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: LTC7801EUFD
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: QFN-24
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 10000 Pieces per Day
Contact Now

LTC7801EUFD 150V Synchronous Step-Down DC/DC Controller Integrated Circuit Chip for Humanoid Robots

Description
Part Number: LTC7801EUFD Function: Step-Down
Voltage - Supply (Vcc/Vdd): 4V ~ 140V Frequency - Switching: 50kHz ~ 900kHz
Duty Cycle (Max): 100% Operating Temperature: -40°C ~ 125°C (TJ)

LTC7801EUFD Integrated Circuit Chip 150V Synchronous Step-Down DC/DC Controller For Humanoid Robots

LTC7801EUFD is an industrial high-performance all N-channel synchronous step-down DC-DC controller, optimized for high-power power supply systems of 24V/48V lithium battery powered humanoid robots.

LTC7801EUFD supports ultra-wide input voltage from 4V to 140V with 150V absolute maximum rating, which eliminates extra surge suppression components and directly withstands voltage spikes caused by servo startup and battery hot swapping.

Specifications
Product Category: Switching Controllers
Topology: Buck
Number of Outputs: 1 Output
Switching Frequency: 50 kHz to 900 kHz
Duty Cycle - Max: 100 %
Output Voltage: 800 mV to 60 V
Output Current: 10 A
Minimum Operating Temperature: -40 ℃
Maximum Operating Temperature: +125 ℃
Mounting Style: SMD/SMT
Package / Case: QFN-24
Fall Time: 15 ns
Isolation: Non-Isolated
Operating Supply Voltage: 4 V to 140 V
Features
  • Wide VIN Range: 4V to 140V (150V Abs Max)
  • Wide Output Voltage Range: 0.8V to 60V
  • Adjustable Gate Drive Level: 5V to 10V (OPTI-DRIVE)
  • Low Operating IQ: 40μA (Shutdown = 10μA)
  • 100% Duty Cycle Operation
  • Integrated Bootstrap Diode
  • Selectable Gate Drive UVLO Thresholds
  • Onboard LDO or External NMOS LDO for DRVCC
  • EXTVCC LDO Powers Drivers from VOUT
  • Phase-Lockable Frequency (75kHz to 850kHz)
  • Programmable Fixed Frequency (50kHz to 900kHz)
  • Selectable Continuous, Pulse-Skipping or Low Ripple Burst Mode® Operation at Light Loads
  • Adjustable Burst Clamp
  • Power Good Output Voltage Monitor
  • Programmable Input Overvoltage Lockout
Applications
  • Humanoid Robots
  • Automotive and Industrial Power Systems
  • High Voltage Battery Operated Systems
  • Telecommunications Power Systems
