LTC4364HS-2 Automotive-Grade Surge Stopper IC with 4V to 80V Wide Voltage Range and 750uA Current Rating

LTC4364HS-2 Automotive-Grade Surge Stopper IC with 4V to 80V Wide Voltage Range and 750uA Current Rating
LTC4364HS-2 Automotive-Grade Surge Stopper IC with 4V to 80V Wide Voltage Range and 750uA Current Rating

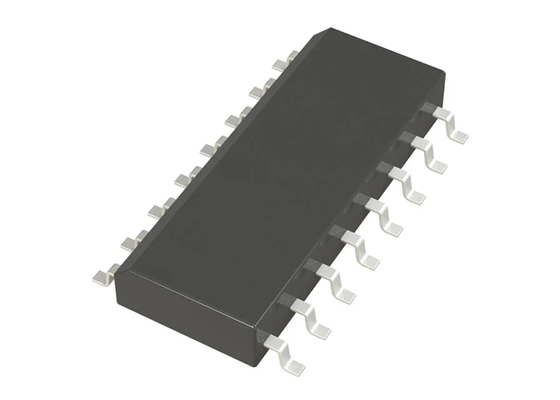

Large Image :  LTC4364HS-2 Automotive-Grade Surge Stopper IC with 4V to 80V Wide Voltage Range and 750uA Current Rating

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: LTC4364HS-2
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: 16-SO
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 10000 Pieces per Day
Contact Now

LTC4364HS-2 Automotive-Grade Surge Stopper IC with 4V to 80V Wide Voltage Range and 750uA Current Rating

Description
Part Number: LTC4364HS-2 Voltage - Working: 4 VDC To 80 VDC
Number Of Circuits: 1 Current Rating:: 750 UA
Minimum Operating Temperature:: - 40 C Maximum Operating Temperature:: + 125 C

LTC4364HS-2 Integrated Circuit Chip General Purpose 750uA Surge Stopper With Ideal Diode

The LTC4364HS-2 is an automotive-grade general-purpose surge suppressor IC that integrates ideal diode control. It operates over a wide voltage range of 4-80V, withstands high-voltage surges exceeding 80V, and supports adjustable output clamping, bidirectional reverse-connection protection, timed overcurrent shutdown and under-voltage protection.

It features automatic retry with a low duty cycle following a fault, operates stably over a wide temperature range of -40°C to 125°C, and is suitable for humanoid robot power supplies, multi-motor drives and redundant power supply circuits. It can withstand motor start-stop surges and power supply transients, maintains short-term power to the downstream control board during input power loss, and automatically isolates and recovers from short-circuit and overvoltage conditions, significantly enhancing the overall power supply reliability of the robot.

Specifications
Parameter Value
Voltage Rating 4 VDC to 80 VDC
Current Rating 750 uA
Minimum Operating Temperature -40°C
Maximum Operating Temperature +125°C
Applications Automotive, Avionics, Industrial
Height 1.75 mm
Length 10 mm
Width 3.99 mm
Unit Weight 638 mg
Key Features
  • Wide Operating Voltage Range: 4V to 80V
  • Withstands Surges Over 80V with VCC Clamp
  • Adjustable Output Clamp Voltage
  • Ideal Diode Controller Holds Up Output Voltage During Input Brownouts
  • Reverse Input Protection to -40V
  • Reverse Output Protection to -20V
  • Overcurrent Protection
  • Low 10μA Shutdown Current at 12V
  • Adjustable Fault Timer
  • 0.1% Retry Duty Cycle During Faults
  • Available in 4mm x 3mm 14-Lead DFN, 16-Lead MSOP, and 16-Lead SO Packages
  • AEC-Q100 Qualified for Automotive Applications
Applications
  • Automotive/Avionic Surge Protection
  • Hot Swap/Live Insertion
  • Redundant Supply ORing
  • Output Port Protection
  • Humanoid Robots
Related Products
Part Number Package
BTS71220-4ESE 24-TSSOP
BTS71220-4ESP 24-TSSOP
TPS536C9TRSLR VQFN-48
TPS53685RSBR WQFN-40
TPS536C5RSLR VQFN-48
TPS53689RSBR WQFN-40
TPS53676RSLR VQFN-48
TPS53688RSBR QFN-40
LM5170PHPR TQFP-48
MCP9601-E/MX 20-VQFN
Frequently Asked Questions
Are your products original?
Yes, all products are original, new original import is our purpose.
Which Certificates do you have?
We are ISO 9001:2015 Certified Company and member of ERAI.
Can you support small quantity order or sample? Is the sample free?
Yes, we support sample order and small order. Sample cost is different according to your order or project.
How to ship my order? Is it safe?
We use express to ship, such as DHL, Fedex, UPS, TNT, EMS. We can also use your suggested forwarder. Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
What about the lead time?
We can ship stock parts within 5 working days. If without stock, we will confirm lead time for you based on your order quantity.
