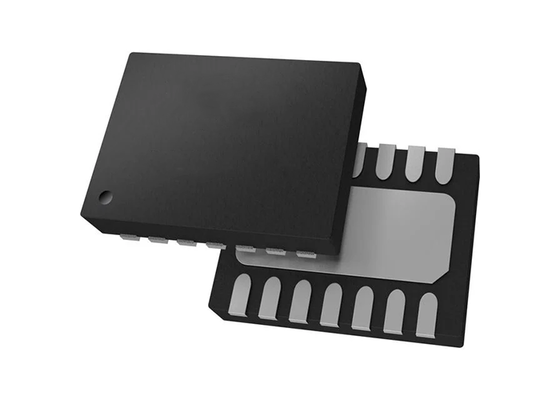

LTC4364IDE-1 Integrated Circuit Chip 750uA Surge Stopper with 4V to 80V Wide Operating Voltage and Automotive-Grade Protection

LTC4364IDE-1 is an automotive-grade general-purpose surge suppressor IC that integrates ideal diode control. It supports a wide input voltage range of 4-80 V and can withstand high-voltage surges, reverse polarity, undervoltage drops and overcurrent short circuits. It utilizes an external MOSFET to achieve an ultra-low-loss path, maintains power to the downstream circuit during input power loss, and provides lockout protection following a fault.

Suitable for motor drivers, main control power supplies and sensor circuits in humanoid robots, it protects against voltage spikes caused by motion start-stop cycles, cable reverse connections and transient voltage drops, ensuring a stable and reliable power supply for the entire robot system.

• Wide Operating Voltage Range: 4V to 80V
• Withstands Surges Over 80V with VCC Clamp
• Adjustable Output Clamp Voltage
• Ideal Diode Controller Holds Up Output Voltage During Input Brownouts
• Reverse Input Protection to -40V
• Reverse Output Protection to -20V
• Overcurrent Protection
• Low 10μA Shutdown Current at 12V
• Adjustable Fault Timer
• 0.1% Retry Duty Cycle During Faults
• Available in 4mm x 3mm 14-Lead DFN, 16-Lead MSOP, and 16-Lead SO Packages
• AEC-Q100 Qualified for Automotive Applications

• Automotive/Avionic Surge Protection
• Hot Swap/Live Insertion
• Redundant Supply ORing
• Output Port Protection
• Humanoid Robots
