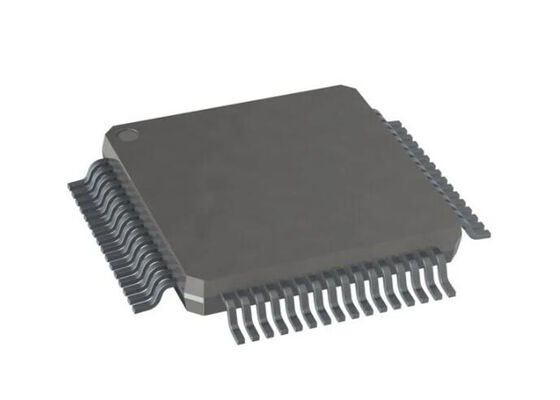

LTC7871JLWE Integrated Circuit Chip Synchronous Bidirectional Buck-Boost PolyPhase Controller with 60kHz ~ 750kHz Switching Frequency for Humanoid Robots

LTC7871JLWE Integrated Circuit Chip Synchronous Bidirectional Buck-Boost PolyPhase Controller with 60kHz ~ 750kHz Switching Frequency for Humanoid Robots
LTC7871JLWE Integrated Circuit Chip Synchronous Bidirectional Buck-Boost PolyPhase Controller with 60kHz ~ 750kHz Switching Frequency for Humanoid Robots

Large Image :  LTC7871JLWE Integrated Circuit Chip Synchronous Bidirectional Buck-Boost PolyPhase Controller with 60kHz ~ 750kHz Switching Frequency for Humanoid Robots

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: LTC7871JLWE
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: LQFP-64
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 10000 Pieces per Day
Contact Now

LTC7871JLWE Integrated Circuit Chip Synchronous Bidirectional Buck-Boost PolyPhase Controller with 60kHz ~ 750kHz Switching Frequency for Humanoid Robots

Description
Part Number: LTC7871JLWE Series: PolyPhase
Number Of Outputs: 6 Topology: Buck-Boost
Frequency - Switching: 60kHz ~ 750kHz Operating Temperature: -40°C ~ 150°C (TJ)

LTC7871JLWE Integrated Circuit Chip Synchronous Bidirectional Buck-Boost PolyPhase Controller LQFP-64
Product Overview

LTC7871JLWE is a high-performance six-phase synchronous bidirectional buck-boost PolyPhase controller, specially optimized for high-power 48V lithium battery powered humanoid robots with dual 48V main bus and 12V servo auxiliary rail architecture.

LTC7871JLWE supports bidirectional energy flow: buck mode converts 48V high voltage to 12V for joint servo drivers, while boost mode recovers regenerative braking energy from motors back to the main 48V battery, greatly improving robot battery endurance.

Specifications
Parameter Value
Topology Buck-Boost
Number of Outputs 1 Output
Switching Frequency 60 kHz to 750 kHz
Duty Cycle - Max 98%
Output Voltage 300 mV
Output Current 3 A to 15 A
Minimum Operating Temperature -40℃
Maximum Operating Temperature +150℃
Mounting Style SMD/SMT
Package / Case eLQFP-64
Key Features
  • Humanoid Robot Chips
  • Unique Architecture Allows Dynamic Regulation of Input Voltage, Output Voltage or Current
  • Operates with External Gate Drivers and MOSFETs
  • VHIGH Voltages Up to 100V; VLOW Voltages Up to 60V
  • Synchronous Rectification: Up to 98% Efficiency
  • ADI-Proprietary Advanced Current Mode Control
  • ±1% Voltage Regulation Accuracy Overtemperature
  • Accurate, Programmable Inductor Current Monitoring and Bidirectional Regulation
  • SPI Compliant Serial Interface
  • Operation Status and Fault Report
  • Programmable VHIGH, VLOW Margining
  • Phase-Lockable Frequency: 60kHz to 750kHz
  • Optional Spread Spectrum Modulation
  • Multiphase/Multi-ICs Operation Up to 24 Phases
  • Selectable CCM/DCM/Burst Mode Operation
  • Thermally Enhanced 64-Lead LQFP Package
Applications
  • Humanoid Robot
  • Automotive 48V/12V Dual Battery Systems
  • Backup Power Systems
