TCM2-672AX Wireless Communication Module 1500MHz To 6700MHz Surface Mount RF Transformer with Low Insertion Loss

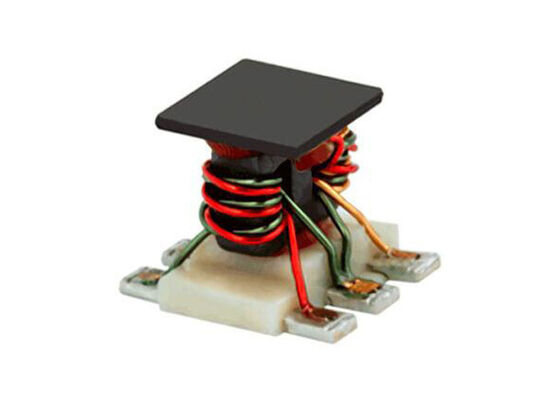

Large Image : TCM2-672AX Wireless Communication Module 1500MHz To 6700MHz Surface Mount RF Transformer with Low Insertion Loss

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	TCM2-672AX

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	SMD
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union

Contact Now

TCM2-672AX Wireless Communication Module 1500MHz To 6700MHz Surface Mount RF Transformer with Low Insertion Loss

Description

Part Number:	TCM2-672AX	Frequency Range:	1.5GHz ~ 6.7GHz
Phase Difference:	6°	Insertion Loss (Max):	3.2dB
Return Loss (Min):	15dB	Mounting Type:	Surface Mount

TCM2-672AX Wireless Communication Module 1500MHz To 6700MHz Transmission Line Core And Wire Transformer

Product Description

TCM2-672AX is a surface-mount transmission line core and wire transformer covering a very wide frequency range from 1500 to 6700MHz. The transformer provides low insertion loss with excellent flatness over its entire frequency range. It achieves low phase and amplitude unbalance and excellent input return loss performance. Featuring core and wire construction on a 6-lead plastic base with tin over nickel termination finish, the unit measures 0.16x0.15x0.16", accommodating dense circuit board layouts.

Specifications

Product	RF Transformers
Type	Transformer
Termination Style	SMD/SMT
Frequency Range	1.5 GHz to 6.7 GHz
Primary Impedance	50 Ohms
Secondary Impedance	50 Ohms
Minimum Operating Temperature	-40 ℃
Maximum Operating Temperature	+85 ℃
Number of Channels	1 Channel
Package / Case	4.06 mm x 3.81 mm x 4.06 mm
Maximum DC Current	30 mA
Power Rating	400 mW

Key Features

Wideband, 1500 to 6700 MHz
Balanced Transmission Line
Low Insertion Loss 0.8 dB at 4 GHz
Flat Insertion Loss, 0.6 dB Typ.
Good Input Return Loss, 15 dB Typ.
Low Phase and Amplitude Unbalance, 6°, 0.8 dB at 4 GHz
Aqueous Washable

Applications

PCS
Wideband Push-Pull Amplifiers
Cellular
