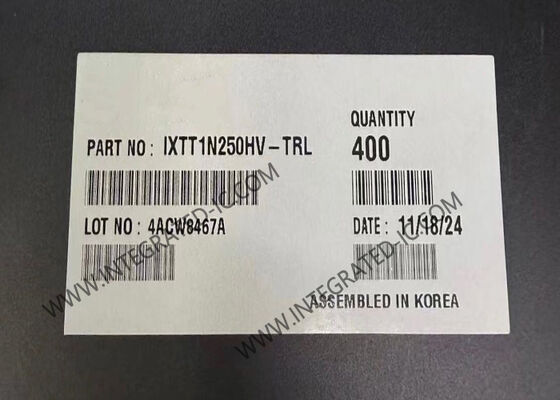

IXTT1N250HV 2500V N-Channel Power MOSFET with 1.5A Continuous Drain Current for Fast Switching Applications

IXTT1N250HV 2500V N-Channel Power MOSFET with 1.5A Continuous Drain Current for Fast Switching Applications
IXTT1N250HV 2500V N-Channel Power MOSFET with 1.5A Continuous Drain Current for Fast Switching Applications

Large Image :  IXTT1N250HV 2500V N-Channel Power MOSFET with 1.5A Continuous Drain Current for Fast Switching Applications

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: IXTT1N250HV
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: TO-268-3
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

IXTT1N250HV 2500V N-Channel Power MOSFET with 1.5A Continuous Drain Current for Fast Switching Applications

Description
Part Number: IXTT1N250HV FET Type: N-Channel
Drain To Source Voltage (Vdss): 2500 V Current - Continuous Drain (Id) @ 25°C: 1.5A (Tc)
Rds On (Max) @ Id, Vgs: 40Ohm @ 750mA, 10V Power Dissipation (Max): 250W (Tc)

IXTT1N250HV Integrated Circuit Chip 2500V N-Channel Power MOSFET Transistors TO-268-3
Product Overview

IXTT1N250HV is an N-channel enhancement-mode high-voltage power MOSFET designed specifically for fast-switching applications requiring extremely high breakdown voltages.

Specifications
Parameter Value
Product Category MOSFETs
Technology Si
Mounting Style SMD/SMT
Package / Case D3PAK-3 (TO-268-3)
Transistor Polarity N-Channel
Number of Channels 1 Channel
Vds - Drain-Source Breakdown Voltage 2.5 kV
Id - Continuous Drain Current 1.5 A
Rds On - Drain-Source Resistance 40 Ohms
Vgs - Gate-Source Voltage -20 V, 20 V
Vgs th - Gate-Source Threshold Voltage 2 V
Qg - Gate Charge 41 nC
Minimum Operating Temperature -55℃
Maximum Operating Temperature +150℃
Pd - Power Dissipation 250 W
Channel Mode Enhancement
Configuration Single
Fall Time 39 ns
Forward Transconductance - Min 1 mS
Product Type MOSFETs
Rise Time 25 ns
Transistor Type 1 N-Channel
Typical Turn-Off Delay Time 132 ns
Typical Turn-On Delay Time 69 ns
Key Features
  • High Blocking Voltage
  • High Voltage Package
  • Fast Intrinsic Diode
  • Low Package Inductance
Applications
  • High Voltage Power Supplies
  • Capacitor Discharge
  • Pulse Circuits
