TB6575FNG Integrated Circuit Chip PWM Controller for 3-Phase Full-Wave BLDC Motors with Sensorless Commutation and PWM Current Control

TB6575FNG Integrated Circuit Chip PWM Controller for 3-Phase Full-Wave BLDC Motors with Sensorless Commutation and PWM Current Control
TB6575FNG Integrated Circuit Chip PWM Controller for 3-Phase Full-Wave BLDC Motors with Sensorless Commutation and PWM Current Control

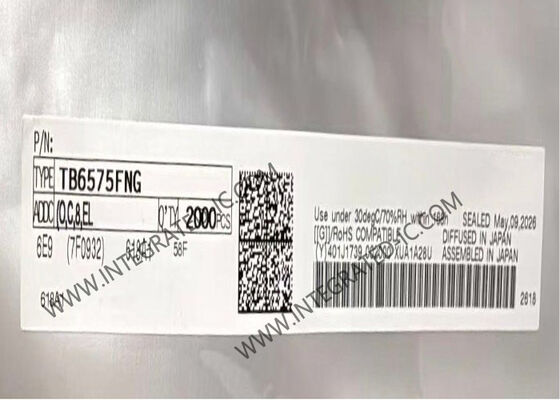

Large Image :  TB6575FNG Integrated Circuit Chip PWM Controller for 3-Phase Full-Wave BLDC Motors with Sensorless Commutation and PWM Current Control

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: TB6575FNG
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: SSOP-24
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 10000 Pieces per Day
Contact Now

TB6575FNG Integrated Circuit Chip PWM Controller for 3-Phase Full-Wave BLDC Motors with Sensorless Commutation and PWM Current Control

Description
Part Number: TB6575FNG Voltage - Supply: 4.5V ~ 5.5V
Operating Temperature: -30°C ~ 105°C (TA) Technology: CMOS
Interface: Parallel Function: Controller - Commutation, Direction Management

TB6575FNG Integrated Circuit Chip PWM Sensorless Controller For 3-Phase Full-Wave BLDC Motors
Product Overview

TB6575FNG provides sensorless commutation and PWM current control for 3-phase full-wave BLDC motors. It controls rotation speed by changing a PWM duty cycle by analog voltage.

Technical Specifications
Type 3 Phase
Output Current 20 mA
Operating Supply Current 2 mA
Minimum Operating Temperature -30 °C
Maximum Operating Temperature +105 °C
Number of Outputs 3 Output
Power Dissipation 780 mW
Supply Voltage - Max 5 V
Key Features
  • 3-phase full-wave sensorless drive
  • PWM chopper drive
  • PWM duty cycle control by analog input
  • 20-mA current sink capability on PWM output pins
  • Overcurrent protection
  • Forward/reverse rotation
  • Lead angle control (7.5° and 15°)
  • Overlap commutation
  • Rotation speed sensing signal
  • DC excitation mode to improve startup characteristic
  • DC excitation time and forced commutation time for startup operation can be changed
  • Forced commutation frequency can be selected (fXT/(6 * 2¹⁶), fXT/(6 * 2¹⁷), fXT/(6 * 2¹⁸))
  • Output polarity switching (P-channel + N-channel, N-channel + N-channel)
