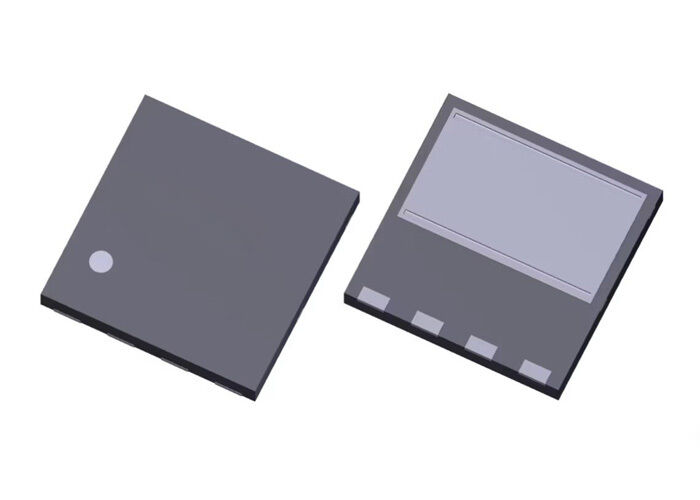

IDL10G65C5 650V 10A CoolSiC™ Schottky Diode Silicon Carbide Power Component

IDL10G65C5 650V 10A CoolSiC™ Schottky Diode Silicon Carbide Power Component
IDL10G65C5 650V 10A CoolSiC™ Schottky Diode Silicon Carbide Power Component

Large Image :  IDL10G65C5 650V 10A CoolSiC™ Schottky Diode Silicon Carbide Power Component

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: IDL10G65C5
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: PG-VSON-4
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

IDL10G65C5 650V 10A CoolSiC™ Schottky Diode Silicon Carbide Power Component

Description
Part Number: IDL10G65C5 Technology: SiC (Silicon Carbide) Schottky
Voltage - DC Reverse (Vr) (Max): 650 V Current - Average Rectified (Io): 10A
Current - Reverse Leakage @ Vr: 180 µA @ 650 V Capacitance @ Vr, F: 300pF @ 1V, 1MHz

IDL10G65C5 Integrated Circuit Chip 650V CoolSiC™ Schottky Diodes PG-VSON-4 Silicon Carbide Schottky Diode
Product Description

IDL10G65C5 is a 650V, 2A CoolSiC™ (silicon carbide) Schottky diode in a DPAK real2pin package, which achieves a significant improvement in performance through a combination of thin-wafer technology and a proprietary diffusion bonding process.

Specifications
Product Category SiC Schottky Diodes
Mounting Style SMD/SMT
Package / Case VSON-4
Configuration Single
If - Forward Current 10 A
Vrrm - Repetitive Reverse Voltage 650 V
Vf - Forward Voltage 1.8 V
Ifsm - Forward Surge Current 50 A
Ir - Reverse Current 2 uA
Minimum Operating Temperature -55℃
Maximum Operating Temperature +150℃
Pd - Power Dissipation 113 W
Key Features
  • Revolutionary semiconductor material - Silicon Carbide
  • Improved figure of merit (Q c x V f)
  • No reverse recovery charge
  • Soft switching reverse recovery waveform
  • Temperature independent switching behavior
  • High operating temperature (T j max 175°C)
  • Improved surge capability
  • Pb-free lead plating; RoHS compliant
  • Qualified according to JEDEC for target applications
  • Breakdown voltage tested at 22 mA
  • Optimized for high temperature operation
Applications
  • Intermediate Bus Converter (IBC)
  • Power conversion
  • Switch mode power supply
  • Power factor correction
  • Solar inverter
  • Uninterruptible power supply
