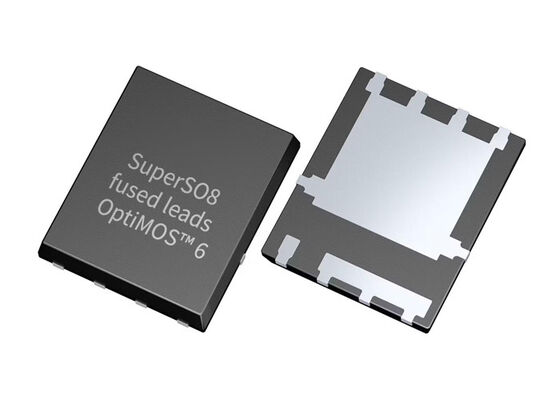

ISC018N08NM6 80V OptiMOS™ 6 N-Channel Power MOSFET with 175°C Operating Temperature in PG-TDSON-8 Package

ISC018N08NM6 80V OptiMOS™ 6 N-Channel Power MOSFET with 175°C Operating Temperature in PG-TDSON-8 Package
ISC018N08NM6 80V OptiMOS™ 6 N-Channel Power MOSFET with 175°C Operating Temperature in PG-TDSON-8 Package

Large Image :  ISC018N08NM6 80V OptiMOS™ 6 N-Channel Power MOSFET with 175°C Operating Temperature in PG-TDSON-8 Package

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: ISC018N08NM6
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: PG-TDSON-8
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

ISC018N08NM6 80V OptiMOS™ 6 N-Channel Power MOSFET with 175°C Operating Temperature in PG-TDSON-8 Package

Description
Part Number: ISC018N08NM6 Series: OptiMOS™ 6
Drain To Source Voltage (Vdss): 80 V Gate Charge (Qg) (Max) @ Vgs: 76 NC @ 10 V
Power Dissipation (Max): 3W (Ta), 217W (Tc) Operating Temperature: -55°C ~ 175°C (TJ)

ISC018N08NM6 Integrated Circuit Chip 80V OptiMOS™ 6 N-Channel Power MOSFET PG-TDSON-8
Product Overview

ISC018N08NM6 is an 80V, OptiMOS™ 6 N-Channel Power MOSFET in PG-TDSON-8 package. It is ideal for high switching frequency applications such as telecom, server and solar systems. Thanks to the performance improvement of OptiMOS™ 6 80V technology, it can also be used in battery powered applications and battery management systems (BMS).

Technical Specifications
Series OptiMOS™ 6
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 80 V
Current - Continuous Drain (Id) @ 25°C 27A (Ta), 230A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 8V, 10V
Rds On (Max) @ Id, Vgs 1.8mOhm @ 50A, 10V
Vgs(th) (Max) @ Id 3.5V @ 114µA
Gate Charge (Qg) (Max) @ Vgs 76 nC @ 10 V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 5400 pF @ 40 V
Power Dissipation (Max) 3W (Ta), 217W (Tc)
Operating Temperature -55°C ~ 175°C (TJ)
Mounting Type Surface Mount
Supplier Device Package PG-TDSON-8 FL
Package / Case 8-PowerTDFN
Key Features
  • N-channel, normal level
  • Very low on-resistance RDS(on)
  • Excellent gate charge x RDS(on) product (FOM)
  • Very low reverse recovery charge (Qrr)
  • Ideal for high frequency switching and synchronous rectification
  • 175°C operating temperature
  • High avalanche energy rating
