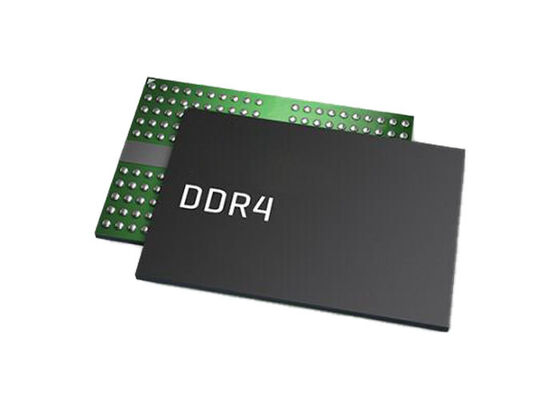

H5ANAG8NCJR-XNC 16Gb DDR4 SDRAM Memory IC Chip with 3200Mbps Data Rate and 1.2V Operating Voltage

H5ANAG8NCJR-XNC is a 16Gb CMOS Double Data Rate IV (DDR4) Synchronous DRAM Memory IC, ideally suited for main memory applications requiring large memory density and high bandwidth.

• Type: DDR4 SDRAM
• Storage capacity: 16Gb (2GB)
• Data rate: 3200Mbps
• Configuration: 2Gb x 8
• Bus width: x8
• Clock frequency: up to 1600 MHz
• Operating voltage: standard 1.2 V, compatible with 1.14 V to 1.26 V
• Package: 78ball FBGA
• Operating temperature range: 0 °C to 95 °C (Tc)

• VDD=VDDQ=1.2V +/- 0.06V
• Programmable additive latency 0, CL-1, and CL-2 supported (x4/x8 only)
• Programmable CAS Write latency (CWL) = 9, 10, 11, 12, 14, 16, 18
• Programmable burst length 4/8 with both nibble sequential and interleave mode
• Average Refresh Cycle (Tcase of 0°C ~ 95°C)
• Asynchronous RESET pin supported
• ZQ calibration supported
• TDQS (Termination Data Strobe) supported (x8 only)
• Write Levelization supported
• 8 bit pre-fetch
• Fine Granularity Refresh supported
• Per DRAM Addressability supported
• Geardown Mode (1/2 rate, 1/4 rate) supported
• Programmable Preamble for read and write supported

• Data storage
• Firmware boot
• Embedded logging
• Industrial controllers
• Computing modules
