NB3L202KMNTXG Integrated Circuit Chip 350MHz Differential 1:2 HCSL Clock Fanout Buffer

NB3L202KMNTXG Integrated Circuit Chip 350MHz Differential 1:2 HCSL Clock Fanout Buffer
NB3L202KMNTXG Integrated Circuit Chip 350MHz Differential 1:2 HCSL Clock Fanout Buffer

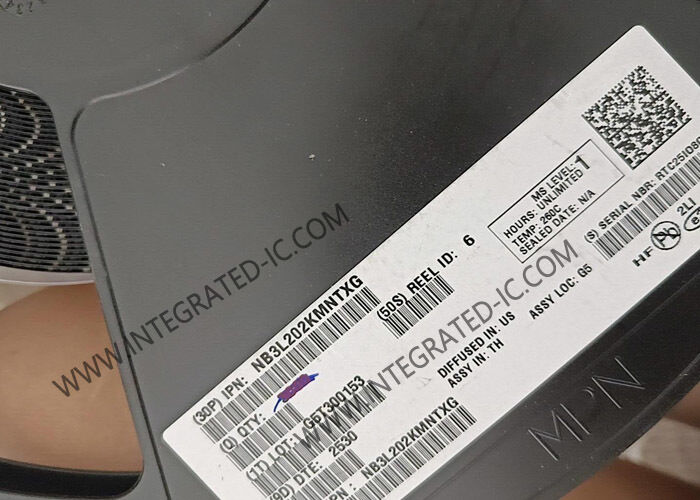

Large Image :  NB3L202KMNTXG Integrated Circuit Chip 350MHz Differential 1:2 HCSL Clock Fanout Buffer

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: NB3L202KMNTXG
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: QFN-16
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

NB3L202KMNTXG Integrated Circuit Chip 350MHz Differential 1:2 HCSL Clock Fanout Buffer

Description
Part Number: NB3L202KMNTXG Frequency - Max: 350 MHz
Ratio - Input:Output: 1:2 Output: HCSL
Voltage - Supply: 2.375V ~ 3.63V Operating Temperature: -40°C ~ 85°C (TA)

NB3L202KMNTXG Integrated Circuit Chip 350MHz Differential 1:2 HCSL Clock Fanout Buffer

The NB3L202KMNTXG is a differential 1:2 clock fanout buffer featuring High-speed Current Steering Logic (HCSL) outputs. This device accepts differential LVPECL, LVDS, and HCSL signals directly, and can accommodate single-ended LVPECL, HCSL, LVCMOS, or LVTTL levels with proper external Vth reference. The input signal is translated to HCSL and provides two identical copies operating up to 350 MHz. Optimized for ultra-low phase noise, propagation delay variation, and low output-to-output skew, the NB3L202K is DB200H compliant.

Specifications
Product Category Clock Buffer
Number of Outputs 2 Output
Max Output Frequency 350 MHz
Propagation Delay - Max 1.4 ns
Output Type HCSL
Package / Case QFN-16
Input Type HCSL, LVDS, LVPECL
Maximum Input Frequency 350 MHz
Supply Voltage - Min 2.375 V
Supply Voltage - Max 3.63 V
Minimum Operating Temperature -40℃
Maximum Operating Temperature +85℃
Duty Cycle - Max 55%
Mounting Style SMD/SMT
Operating Supply Current 80 mA
Key Features
  • Maximum Input Clock Frequency > 350 MHz
  • 2.5 V ±5% / 3.3 V ±10% Supply Voltage Operation
  • 2 HCSL Outputs
  • DB200H Compliant
  • Individual OE Control Pin for Each Bank of Outputs
  • 100 ps Max Output-to-Output Skew Performance
  • 1 ns Typical Propagation Delay
  • 500 ps Typical Rise and Fall Times
  • 80 fs Maximum Additive Phase Jitter RMS
  • PCIe Gen 3 and Gen 4 Compliant
Applications
  • Mobile Computing
  • Networking
  • Gigabit Ethernet
  • FBDIMM
  • PCI Express Gen 3 and Gen 4
