INA2180A4QDGKRQ1 26V 350kHz Automotive-Grade Dual Channel Current Sense Amplifier Integrated Circuit Chip

INA2180A4QDGKRQ1 26V 350kHz Automotive-Grade Dual Channel Current Sense Amplifier Integrated Circuit Chip
INA2180A4QDGKRQ1 26V 350kHz Automotive-Grade Dual Channel Current Sense Amplifier Integrated Circuit Chip

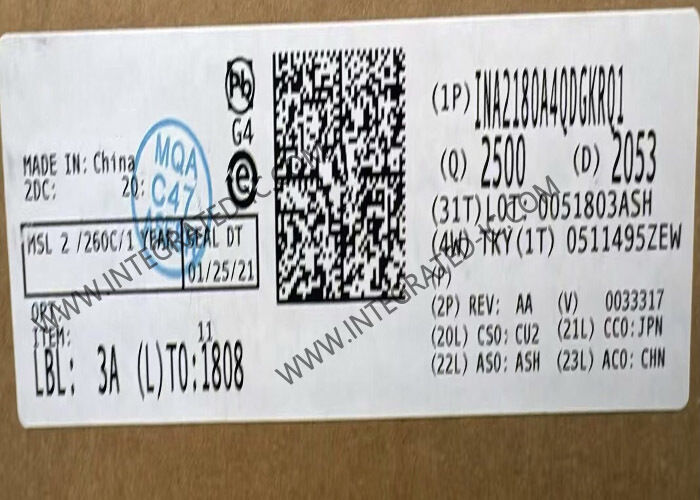

Large Image :  INA2180A4QDGKRQ1 26V 350kHz Automotive-Grade Dual Channel Current Sense Amplifier Integrated Circuit Chip

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: INA2180A4QDGKRQ1
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: VSSOP-8
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

INA2180A4QDGKRQ1 26V 350kHz Automotive-Grade Dual Channel Current Sense Amplifier Integrated Circuit Chip

Description
Part Number: INA2180A4QDGKRQ1 Voltage - Input Offset: 100 µV
Current - Supply: 355µA Slew Rate: 2V/µs
Current - Input Bias: 80 µA Operating Temperature: -40°C ~ 125°C (TA)

INA2180A4QDGKRQ1 Integrated Circuit Chip 26V 350kHz Dual Channel Current Sense Amplifier VSSOP-8
Product Description

INA2180A4QDGKRQ1 is a 26 V, 350 kHz, automotive-grade dual-channel current sense amplifier designed specifically for high-precision, high-reliability current measurement applications.

Specifications
Parameter Value
Number of Channels 2 Channel
GBP - Gain Bandwidth Product 105 kHz
Vcm - Common Mode Voltage 12 V
CMRR - Common Mode Rejection Ratio 100 dB
Ib - Input Bias Current 80 uA
Vos - Input Offset Voltage 100 uV
Supply Voltage - Max 5.5 V
Supply Voltage - Min 2.7 V
Operating Supply Current 500 uA
Gain Error 0.1 %
Minimum Operating Temperature -40 ℃
Maximum Operating Temperature +125 ℃
Mounting Style SMD/SMT
Package / Case VSSOP-8
Amplifier Type High-Side Current Sense Amplifier
Gain V/V 200 V/V
Ios - Input Offset Current 50 nA
Key Features
  • Common-mode range (VCM): -0.2 V to +26 V
  • High bandwidth: 350 kHz (A1 devices)
  • Offset voltage: ±150 µV (maximum) at VCM = 0 V, ±500 µV (maximum) at VCM = 12 V
  • Output slew rate: 2 V/µs
  • Accuracy: ±1% gain error (maximum), 1-µV/°C offset drift (maximum)
  • Quiescent current: 260 µA maximum
Applications
  • Motor control
  • Battery monitoring
  • Power management
  • Lighting control
  • Overcurrent detection
