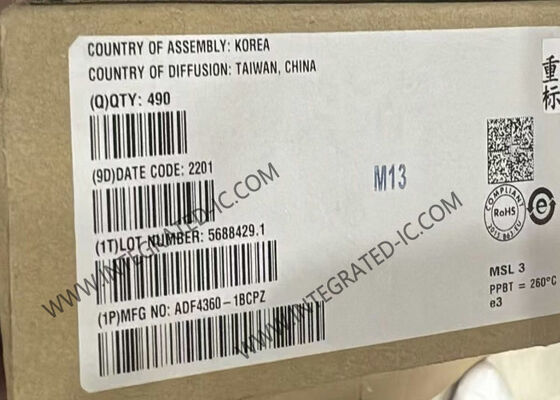

ADF4360-1BCPZ Integrated Circuit Chip 2.45GHz Integer-N Synthesizer and VCO with Divide-by-2 Output and 3V to 3.6V Supply

ADF4360-1BCPZ is a fully integrated integer-N synthesizer and voltage controlled oscillator (VCO). The ADF4360-1 is designed for a center frequency of 2250 MHz. In addition, there is a divide-by-2 option available, whereby the user gets an RF output of between 1025 MHz and 1225 MHz. Control of all the on-chip registers is through a simple 3-wire interface. The device operates with a power supply ranging from 3.0 V to 3.6 V and can be powered down when not in use.

• Output frequency range: 2050 MHz to 2450 MHz
• Divide-by-2 output
• 3.0 V to 3.6 V power supply
• 1.8 V logic compatibility
• Integer-N synthesizer
• Programmable dual-modulus prescaler 8/9, 16/17, 32/33
• Programmable output power level
• 3-wire serial interface
• Analog and digital lock detect
• Hardware and software power-down mode

• Wireless handsets (DECT, GSM, PCS, DCS, WCDMA)
• Test equipment
• Wireless LANs
• CATV equipment
