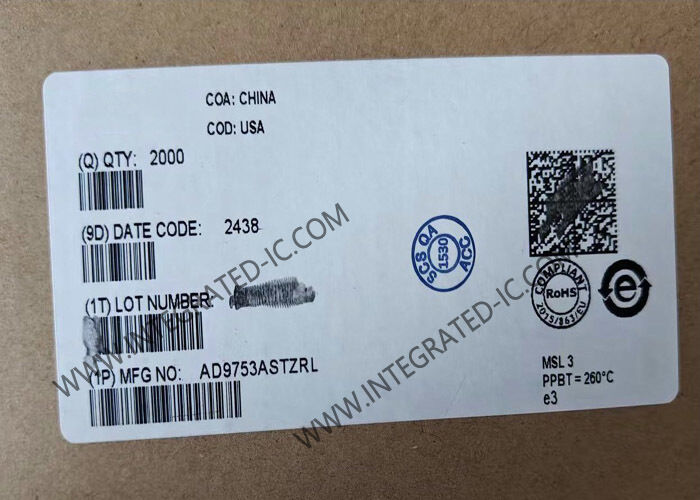

AD9753ASTZ 12-Bit 300 MSPS High Speed TxDAC+ Digital-to-Analog Converter

AD9753ASTZ 12-Bit 300 MSPS High Speed TxDAC+ Digital-to-Analog Converter
AD9753ASTZ 12-Bit 300 MSPS High Speed TxDAC+ Digital-to-Analog Converter

Large Image :  AD9753ASTZ 12-Bit 300 MSPS High Speed TxDAC+ Digital-to-Analog Converter

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: AD9753ASTZ
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: LQFP-48
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union

AD9753ASTZ 12-Bit 300 MSPS High Speed TxDAC+ Digital-to-Analog Converter

Description
Part Number: AD9753ASTZ Number Of Bits: 12
Number Of D/A Converters: 1 Settling Time: 11ns (Typ)
Operating Temperature: -40°C ~ 85°C Voltage - Supply, Analog: 3V ~ 3.6V

AD9753ASTZ Integrated Circuit Chip 12-Bit 300 MSPS High Speed TxDAC+ D/A Converter
Product Description

AD9753ASTZ is a dual, muxed port, ultrahigh speed, single-channel, 12-bit CMOS DAC. It integrates a high quality 12-bit TxDAC+ core, a voltage reference, and digital interface circuitry into a small 48-lead LQFP package. The AD9753 offers exceptional ac and dc performance while supporting update rates up to 300 MSPS.

The AD9753ASTZ has been optimized for ultrahigh speed applications up to 300 MSPS where data rates exceed those possible on a single data interface port DAC. The digital interface consists of two buffered latches as well as control logic. These latches can be time multiplexed to the high speed DAC in several ways. This PLL drives the DAC latch at twice the speed of the externally applied clock and is able to interleave the data from the two input channels. The resulting output data rate is twice that of the two input channels. With the PLL disabled, an external 2* clock may be supplied and divided by two internally.

Specifications
Parameter Value
Resolution 12 bit
Sampling Rate 300 MS/s
Number of Channels 1 Channel
Settling Time 11 ns
Output Type Current
Interface Type Parallel
Analogue Supply Voltage 3.3 V
Digital Supply Voltage 3.3 V
Minimum Operating Temperature -40 °C
Maximum Operating Temperature +85 °C
DNL - Differential Nonlinearity ±0.4 LSB
INL - Integral Nonlinearity ±0.5 LSB
Moisture Sensitive Yes
Number of Converters 1 Converter
Pd - Power Dissipation 165 mW
Supply Voltage - Max 3.6 V
Supply Voltage - Min 3 V
Unit Weight 181.700 mg
Key Features
  • 12-Bit Dual Muxed Port DAC
  • 300 MSPS Output Update Rate
  • Excellent SFDR and IMD Performance
  • SFDR to Nyquist @ 25 MHz Output: 69 dB
  • Internal Clock Doubling PLL
  • Differential or Single-Ended Clock Input
  • On-Chip 1.2 V Reference
  • Single 3.3 V Supply Operation
  • Power Dissipation: 155 mW @ 3.3 V
  • 48-Lead LQFP Package
Product Highlights
  • The AD9753 is a member of a pin compatible family of high speed TxDAC+s providing 10-, 12-, and 14-bit resolution
  • Ultrahigh Speed 300 MSPS Conversion Rate
  • Dual 12-Bit Latched, Multiplexed Input Ports. The AD9753 features a flexible digital interface allowing high speed data conversion through either a single or dual port input
  • Low Power. Complete CMOS DAC function operates on 155 mW from a 3.0 V to 3.6 V single supply. The DAC full-scale current can be reduced for lower power operation
  • On-Chip Voltage Reference. The AD9753 includes a 1.20 V temperature-compensated band gap voltage reference
Applications
  • Communications: LMDS, LMCS, MMDS
  • Base Stations
  • Digital Synthesis
  • QAM and OFDM
