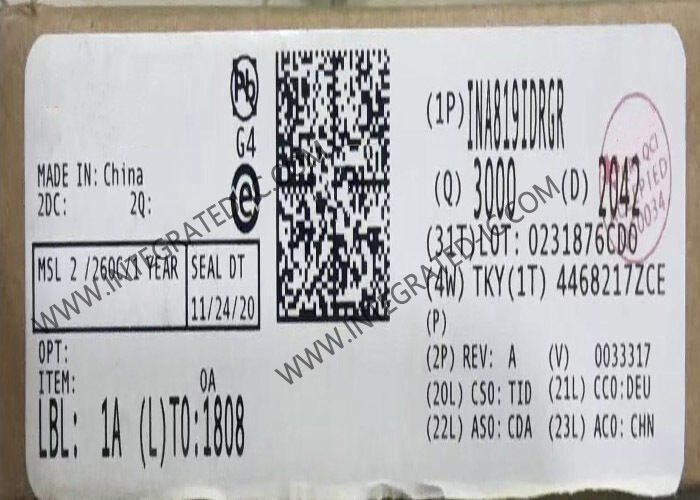

INA819IDRGR Low-Power Precision Instrumentation Amplifier Integrated Circuit Chip WSON-8

INA819IDRGR Low-Power Precision Instrumentation Amplifier Integrated Circuit Chip WSON-8
INA819IDRGR Low-Power Precision Instrumentation Amplifier Integrated Circuit Chip WSON-8

Large Image :  INA819IDRGR Low-Power Precision Instrumentation Amplifier Integrated Circuit Chip WSON-8

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: INA819IDRGR
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: WSON-8
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

INA819IDRGR Low-Power Precision Instrumentation Amplifier Integrated Circuit Chip WSON-8

Description
Part Number: INA819IDRGR Slew Rate: 0.9V/µs
Current - Input Bias: 150 PA Current - Supply: 350µA
Voltage - Input Offset: 10 µV Operating Temperature: -40°C ~ 125°C (TA)

INA819IDRGR Integrated Circuit Chip Low-Power Precision Instrumentation Amplifier WSON-8
Product Overview

The INA819IDRGR is a high-precision instrumentation amplifier offering low power consumption and operation over a wide single-supply or dual-supply range. A single external resistor sets any gain from 1 to 10,000.

This amplifier delivers exceptional precision through super-beta input transistors, providing extremely low input offset voltage, offset voltage drift, input bias current, and input voltage/current noise. Additional circuitry protects inputs against overvoltage up to ±60V.

Technical Specifications
Parameter Value
Product Category Instrumentation Amplifiers
Number of Channels 1 Channel
3 dB Bandwidth 2 MHz
Slew Rate 900 mV/μs
Common Mode Rejection Ratio 140 dB
Input Bias Current 150 pA
Input Offset Voltage 35 μV
Supply Voltage Range 4.5 V to 36 V
Operating Supply Current 385 μA
Operating Temperature Range -40°C to +125°C
Mounting Style SMD/SMT
Package SON-8
Key Features
  • Low offset voltage: 10 μV (typ), 35 μV (max)
  • Gain drift: 5 ppm/°C (G = 1), 35 ppm/°C (G > 1) (max)
  • Noise: 8 nV/√Hz
  • Bandwidth: 2 MHz (G = 1), 270 kHz (G = 100)
  • Stable with 1-nF capacitive loads
  • Inputs protected up to ±60 V
  • Common-mode rejection: 110 dB, G = 10 (min)
  • Power supply rejection: 110 dB, G = 1 (min)
  • Supply current: 385 μA (max)
  • Specified temperature range: -40°C to +125°C
Applications
  • Analog input module
  • Flow transmitter
  • Battery test
  • LCD test
  • Electrocardiogram (ECG)
  • Surgical equipment
  • Process analytics (pH, gas, concentration, force and humidity)
