XR16L788IQ-F 3.3V Octal UART IC with 8 Channels and 6.25Mbps Data Rate

XR16L788IQ-F 3.3V Octal UART IC with 8 Channels and 6.25Mbps Data Rate
XR16L788IQ-F 3.3V Octal UART IC with 8 Channels and 6.25Mbps Data Rate

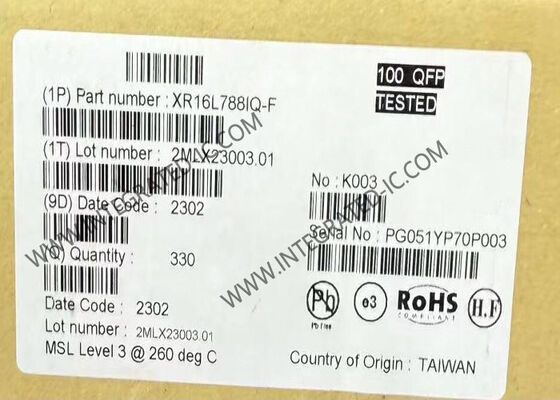

Large Image :  XR16L788IQ-F 3.3V Octal UART IC with 8 Channels and 6.25Mbps Data Rate

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: XR16L788IQ-F
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: QFP-100
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

XR16L788IQ-F 3.3V Octal UART IC with 8 Channels and 6.25Mbps Data Rate

Description
Part Number: XR16L788IQ-F Number Of Channels: 8
FIFO's: 64 Byte Data Rate (Max): 6.25Mbps
Protocol: RS485 Voltage - Supply: 2.97V ~ 5.5V

XR16L788IQ-F Integrated Circuit Chip 3.3V Octal Universal Asynchronous Receiver And Transmitter
Product Overview

XR16L788IQ-F is a 2.97V to 5.5V with 5V tolerant inputs octal Universal Asynchronous Receiver and Transmitter (UART). The highly integrated device is designed for high bandwidth requirement in communication systems. The global interrupt source register provides a complete interrupt status indication for all 8 channels to speed up interrupt parsing.

Specifications
Product Category UART Interface IC
Number of Channels 8 Channel
Data Rate 6.25 Mb/s
Memory Size 64 B
Supply Voltage - Max 5.5 V
Supply Voltage - Min 2.97 V
Operating Supply Current 5 mA
Minimum Operating Temperature -40 ℃
Maximum Operating Temperature +85 ℃
Mounting Style SMD/SMT
Package / Case QFP-100
Operating Supply Voltage 3.3 V, 5 V
Key Features
  • 2.97V to 5.5V with 5V Tolerant Inputs Operation
  • Single Interrupt Output for all 8 UARTs
  • Global Interrupt Source for all 8 UARTs
  • 5G "Flat" UART Registers for Configurations
  • Simultaneous UART Channels Initialization
  • Auto RS485 Half-duplex Control with Programmable Turn-around Delay
  • A General Purpose 16-bit Timer/Counter
  • Sleep Mode with Wake-up Indication
  • Highly Integrated Device for Space Saving
  • First eight registers are 16C550 compatible
  • 64-byte Transmit and Receive FIFOs
  • Transmit and Receive FIFO Level Counters
  • Programmable TX and RX FIFO Trigger Levels
  • Automatic RTS/CTS or DTR/DSR Flow Control
  • Selectable Hardware Flow Control Hysteresis
  • Automatic Xon/Xoff Software Flow Control with Status Indicator
  • Infrared (IrDA 1.0) Data Encoder/Decoder
  • Programmable Data Rate with Prescaler
  • Up to 6.25 Mbps Serial Data Rate at 5V
  • 100-pin QFP Package (14x20x3 mm)
Applications
  • Remote Access Servers
  • Ethernet Network to Serial Ports
  • Network Management
  • Factory Automation and Process Control
  • Point-of-Sale Systems
  • Multi-port RS-232/RS-422/RS-485 Cards
