ACS711ELCTR-25AB-T Hall-Effect Linear Current Sensor IC with 25A Sensing and Overcurrent Fault Protection

ACS711ELCTR-25AB-T Hall-Effect Linear Current Sensor IC with 25A Sensing and Overcurrent Fault Protection
ACS711ELCTR-25AB-T Hall-Effect Linear Current Sensor IC with 25A Sensing and Overcurrent Fault Protection

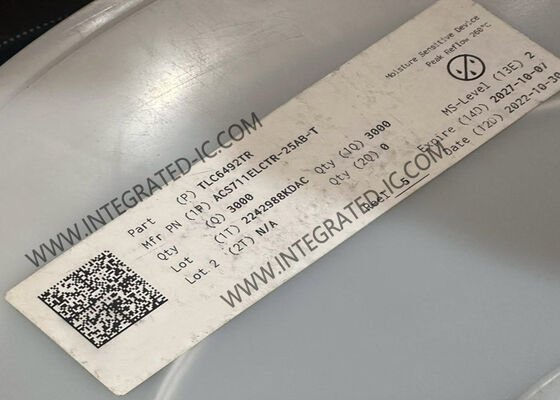

Large Image :  ACS711ELCTR-25AB-T Hall-Effect Linear Current Sensor IC with 25A Sensing and Overcurrent Fault Protection

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: ACS711ELCTR-25AB-T
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: SOIC-8
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

ACS711ELCTR-25AB-T Hall-Effect Linear Current Sensor IC with 25A Sensing and Overcurrent Fault Protection

Description
Part Number: ACS711ELCTR-25AB-T Current - Sensing: 25A
Sensitivity: 55mV/A Frequency: DC ~ 100kHz
Response Time: 4.6µs Voltage - Supply: 3V ~ 5.5V

ACS711ELCTR-25AB-T Sensor IC 25A Hall-Effect Linear Current Sensor With Overcurrent Fault

ACS711ELCTR-25AB-T is Hall-Effect Linear Current Sensor with Overcurrent Fault Output for <100 V Isolation Applications. It offers a cost-effective solution for current sensing in low- and high-side applications, with integrated overcurrent fault protection and a low-noise analog signal path. Eliminates the need for an external sense resistor, reducing component count and PCB space.

Specifications
Product Category Board Mount Current Sensors
Current Rating 25 A
Sensor Type Current Sense
Response Time 4.6 µs
Operating Supply Voltage 3.3 V
Output Type Ratiometric
Height 1.75 mm
Length 4.9 mm
Maximum Operating Temperature +85 ℃
Minimum Operating Temperature -40 ℃
Package / Case SOICN-8
Key Features
  • No external sense resistor required; single package solution
  • Reduced Power Loss:
    • 0.6 mΩ internal conductor resistance on EX package
    • 1.2 mΩ internal conductor resistance on LC package
  • Economical low- and high-side current sensing
  • Output voltage proportional to AC or DC currents
  • ±12.5 A and ±25 A full scale sensing ranges on LC package
  • ±15.5 A and ±31 A full scale sensing ranges on EX package
  • Overcurrent FAULT trips and latches at 100% of full-scale current
  • Low-noise analog signal path
  • 100 kHz bandwidth
  • Small footprint, low-profile SOIC8 and QFN packages
  • 3.0 to 5.5 V, single supply operation
  • Integrated electrostatic shield for output stability
  • Factory-trimmed for accuracy
  • Extremely stable output offset voltage
  • Zero magnetic hysteresis
  • Ratiometric output from supply voltage
Applications
  • Residential Micro/String Solar Inverter
  • Server Power
  • DC-DC Converter
  • 2W-Powertrain
  • In Cabin Motors
