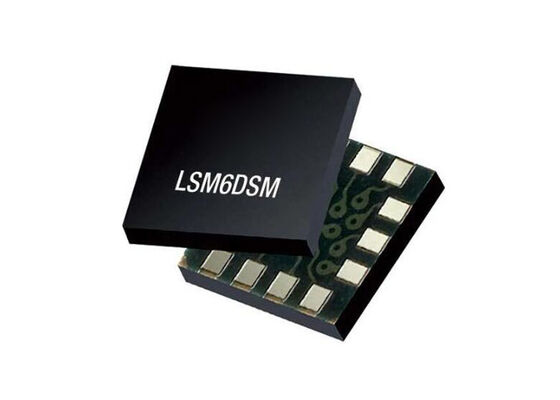

LSM6DSM Sensor IC 6-Axis IMU with 16 bit Resolution 650 uA Current and -40°C ~ 85°C Operating Range

LSM6DSM Sensor IC 6-Axis IMU with 16 bit Resolution 650 uA Current and -40°C ~ 85°C Operating Range
LSM6DSM Sensor IC 6-Axis IMU with 16 bit Resolution 650 uA Current and -40°C ~ 85°C Operating Range

Large Image :  LSM6DSM Sensor IC 6-Axis IMU with 16 bit Resolution 650 uA Current and -40°C ~ 85°C Operating Range

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: LSM6DSM
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: LGA-14
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

LSM6DSM Sensor IC 6-Axis IMU with 16 bit Resolution 650 uA Current and -40°C ~ 85°C Operating Range

Description
Part Number: LSM6DSM Sensor Type: Accelerometer, Gyroscope, Temperature, 6 Axis
Output Type: I2C, SPI Resolution: 16 Bit
Operating Supply Current: 650 UA Operating Temperature: -40°C ~ 85°C
Highlight:

16 bit Resolution LSM6DSM Sensor IC

,

650 uA Operating Supply Current 6-Axis IMU

,

-40°C ~ 85°C Operating Temperature Inertial Measurement Unit

LSM6DSM Sensor IC iNEMO 6DoF Inertial Measurement Unit 6-Axis IMUs LGA-14
Product Description Of LSM6DSM

The LSM6DSM is a system-in-package featuring a 3D digital accelerometer and a 3D digital gyroscope. It performs at 0.65 mA in high-performance mode and enables always-on low-power features for optimal motion experience. The LSM6DSM supports main OS requirements, offering real, virtual and batch sensors with 4 kbyte for dynamic data batching.

Specifications
Product Category IMUs - Inertial Measurement Units
Mounting Style SMD/SMT
Package / Case LGA-14
Sensor Type 6-axis
Interface Type I2C, SPI
Output Type Digital
Acceleration 2 g, 4 g, 8 g, 16 g
Resolution 16 bit
Sensitivity 0.061 mg/LSB, 0.122 mg/LSB, 0.244 mg/LSB, 0.488 mg/LSB
Minimum Operating Temperature -40℃
Maximum Operating Temperature +85℃
Supply Voltage - Min 1.71 V
Supply Voltage - Max 3.6 V
Operating Supply Current 650 uA
Features Of LSM6DSM
  • "Always-on" experience with low power consumption for both accelerometer and gyroscope
  • Power consumption: 0.4 mA in combo normal mode and 0.65 mA in combo high-performance mode
  • Smart FIFO up to 4 kbyte based on features set
  • Android M compliant
  • Auxiliary SPI for OIS data output for gyroscope and accelerometer
  • Hard, soft ironing for external magnetic sensor corrections
  • ±2/±4/±8/±16 g full scale
  • ±125/±250/±500/±1000/±2000 dps full scale
  • Analog supply voltage: 1.71 V to 3.6 V
  • SPI & I2C serial interface with main processor data synchronization
  • Dedicated gyroscope low-pass filters for UI and OIS applications
  • Smart embedded functions: pedometer, step detector and step counter, significant motion and tilt
  • Standard interrupts: free-fall, wakeup, 6D/4D orientation, click and double-click
  • Embedded temperature sensor
Applications Of LSM6DSM
  • Motion tracking and gesture detection
  • Sensor hub
  • Indoor navigation
  • IoT and connected devices
  • Smart power saving for handheld devices
  • EIS and OIS for camera applications
  • Vibration monitoring and compensation
