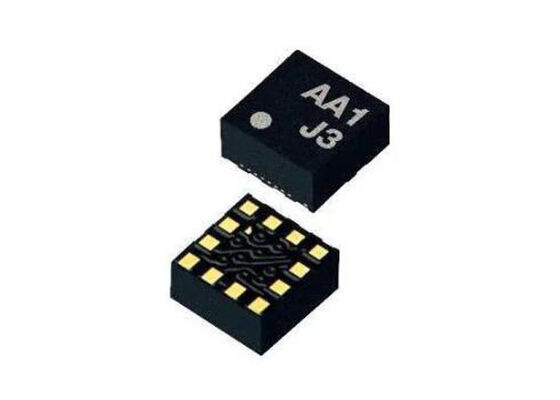

KXTJ3-1057 800Hz Tri-Axis Digital Accelerometer Sensor IC with ±2g to 16g Range

KXTJ3-1057 is a tri-axis ±2g, ±4g, ±8g, or ±16g silicon micromachined accelerometer. Acceleration sensing is based on the principle of a differential capacitance arising from acceleration-induced motion of the sense element, which further utilizes common mode cancellation to decrease errors from process variation, temperature, and environmental stress.

• Small footprint: 2 x 2 x 0.9 mm LGA 12-pin package (pin-to-pin compatible with KXTJ2)
• Low current consumption: 0.9 µA in standby, 10 µA in Low Power, and 155 µA in High Resolution modes
• Extended user-configurable g-ranges: ±2g, ±4g, ±8g, ±16g
• 8-bit, 12-bit, and 14-bit resolution modes
• Wide supply voltage range: 1.71V - 3.6V with internal voltage regulator
• High resolution Wake-Up function with threshold configurable down to 3.9 mg
• User-configurable Output Data Rates from 0.781Hz to 1600Hz
• I2C digital communication interface up to 3.4MHz
• Highly configurable interrupt control
• Embedded Low Pass filter
• Improved design to virtually eliminate post reflow offset and sensitivity shifts
• Improved noise performance
• Stable performance over temperature
• High shock survivability
• Self-test function
• RoHS / REACH compliant
