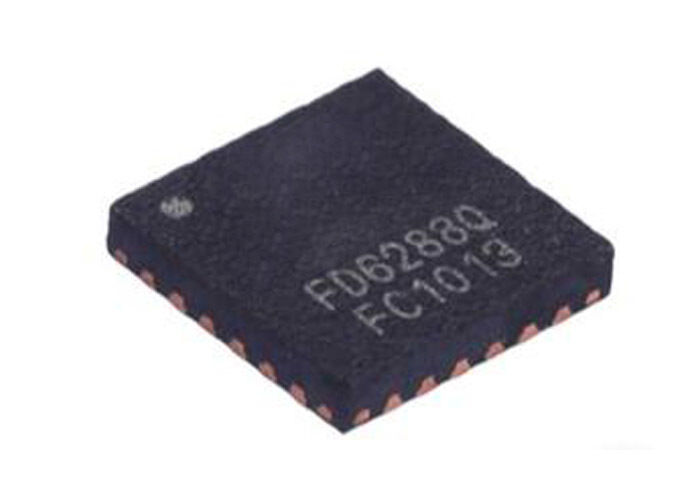

FD6288Q 250V Three-Phase Half-Bridge Gate Driver IC with QFN-24 Package

FD6288 is an integrated circuit (IC) that integrates three independent half-bridge gate drivers. It is specially designed for high-voltage and high-speed drive MOSFETs and operates up to +250V.

FD6288 supports under-voltage lockout (UVLO) feature, protecting the power device from operating with insufficient voltage. The device also provides cross-conduction prevention and deadtime insertion to effectively protect the power IC and prevent both MOSFETs of each half-bridge from switching on simultaneously.

FD6288 includes a built-in input signal filtering module to avoid input noise interference.

• Fully operational to +250V
• Power supply: 5V to 20V
• Three independent half-bridge drivers
• Output current: +1.5A/-1.8A
• 3.3V and 5V logic input compatible
• VCC/VBS UVLO protection
• Cross-conduction prevention logic
• 200ns deadtime
• Built-in input filtering module
• Matched propagation delay for high-side and low-side channels
• Outputs in phase with inputs

• Motor drivers
