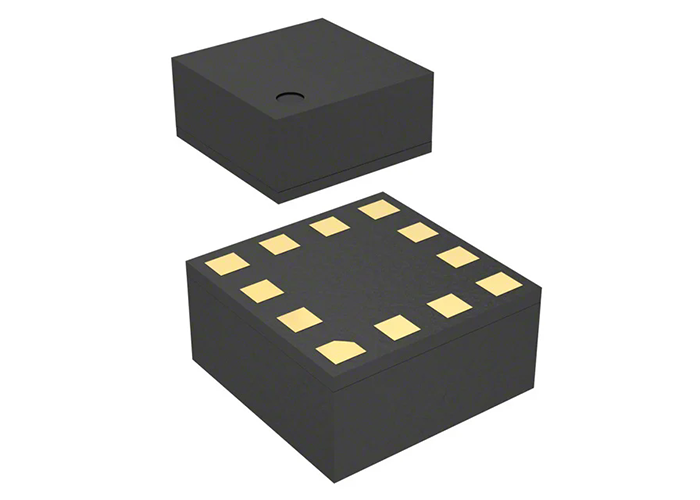

LSM303AH Sensor IC Ultra-Compact High-Performance 6-Axis eCompass Module

LSM303AH Sensor IC Ultra-Compact High-Performance 6-Axis eCompass Module
LSM303AH Sensor IC Ultra-Compact High-Performance 6-Axis eCompass Module

Large Image :  LSM303AH Sensor IC Ultra-Compact High-Performance 6-Axis eCompass Module

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: LSM303AH
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: LGA-12
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 10000 Pieces per Day
Contact Now

LSM303AH Sensor IC Ultra-Compact High-Performance 6-Axis eCompass Module

Description
Part Number: LSM303AH Output Type: I2C, SPI
Operating Temperature: -40°C ~ 85°C Sensor Type: Accelerometer, Magnetometer, Temperature
Package: LGA-12 Axis: 6
Highlight:

Ultra-Compact LSM303AH Sensor IC

,

High-Performance eCompass Module

,

6-Axis LSM303AH

LSM303AH Sensor IC Ultra-Compact High-Performance eCompass Module LGA-12
LSM303AH is an ultra-low-power high-performance system-in-package featuring a 3D digital linear acceleration sensor and a 3D digital magnetic sensor.
Specification Of LSM303
Sensor Type 3-axis
Sensing Axis X, Y, Z
Acceleration 2 g, 4 g, 8 g, 16 g
Sensitivity 0.061 mg/digit, 0.122 mg/digit, 0.244 mg/digit, 0.488 mg/digit
Output Type Digital
Interface Type I2C, SPI
Resolution 16 bit
Supply Voltage - Max 1.98 V
Supply Voltage - Min 1.71 V
Operating Supply Current 200 uA
Minimum Operating Temperature -40 °C
Maximum Operating Temperature +85 °C
Features Of LSM303
  • 3 magnetic field channels and 3 acceleration channels
  • ±50 gauss magnetic dynamic range
  • ±2/±4/±8/±16 g selectable acceleration full scales
  • Anti-aliasing filter
  • 16-bit data output
  • SPI / I2C serial interfaces
  • Analog supply voltage 1.71 V to 1.98 V
  • Programmable interrupt generators for freefall, motion and magnetic field detection
  • Embedded self-test
  • Embedded 256-level FIFO
  • Embedded temperature sensor
  • Embedded digital functions: step detector, step counter, significant motion and tilt
  • ECOPACK®, RoHS and "Green" compliant
Applications Of LSM303
  • Tilt-compensated compasses
  • Map rotation
  • Position and free-fall detection
  • Motion-activated functions
  • Click/double-click recognition
  • Pedometers
  • Intelligent power saving for handheld devices
  • Display orientation
  • Gaming and virtual reality input devices
  • Impact recognition and logging
  • Vibration monitoring and compensation
