QM13144 Low-Loss 4xSPST RF Switch Integrated Circuit Chip with 600 MHz to 6,000 MHz Range in Ultra-Compact QFN Package

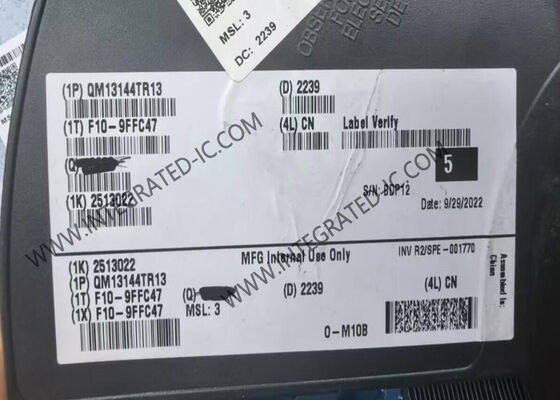

Large Image : QM13144 Low-Loss 4xSPST RF Switch Integrated Circuit Chip with 600 MHz to 6,000 MHz Range in Ultra-Compact QFN Package

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	QM13144

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	QFN
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union

Contact Now

QM13144 Low-Loss 4xSPST RF Switch Integrated Circuit Chip with 600 MHz to 6,000 MHz Range in Ultra-Compact QFN Package

Description

Part Number:	QM13144	Switch Type:	4xSPST
Minimum Frequency:	600 MHz	Maximum Frequency:	6,000 MHz
Package Type:	Module	Package Dimensions:	1.5 Mm × 1.5 Mm × 0.4 Mm
Highlight:	Low-Loss RF Switch , 600 MHz to 6 , 000 MHz Integrated Circuit Chip , Ultra-Compact QFN Package 4xSPST Switch

QM13144 Integrated Circuit Chip Low-Loss 4xSPST Single-Pole-Single-Throw Switch

Product Overview Of QM13144

QM13144 is a low-loss 4xSPST (single-pole, single-throw) RF switch designed specifically for high-performance antenna tuning applications, capable of meeting the stringent requirements for ultra-high voltage handling. The device is housed in an ultra-compact QFN package (1.5 mm × 1.5 mm × 0.4 mm), and all RF paths feature low on-resistance, low off-capacitance, and ultra-high RF voltage handling capability.

Specifications Of QM13144

Switch Type	4xSPST
Minimum Frequency	600 MHz
Maximum Frequency	6,000 MHz
Package Type	Module
Package Dimensions	1.5 mm × 1.5 mm × 0.4 mm

Key Features Of QM13144

Very High Voltage Handling
Low On-Resistance
Very Low Off-Capacitance
Very linear performance
RFFE interface
Very small 1.5 x 1.5 mm module package
Very low profile
Single VIO supply, no VDD required
Suitable for all cellular applications including 5G with broadband performance up to 6 GHz

Applications Of QM13144

Antenna tuning
Band switching
Impedance tuning
5G and Wi-Fi applications
