ADC102S021CIMMX Integrated Circuit Chip 10-Bit 2-Channel 200Ksps A/D Converter

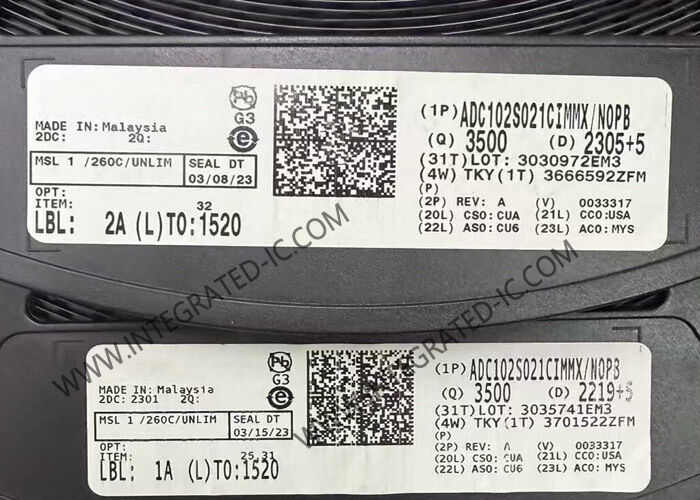

Large Image : ADC102S021CIMMX Integrated Circuit Chip 10-Bit 2-Channel 200Ksps A/D Converter

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	ADC102S021CIMMX

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	VSSOP-8
Delivery Time:	3-5 work days
Payment Terms:	TT
Supply Ability:	10000 Pieces per Day

Contact Now

ADC102S021CIMMX Integrated Circuit Chip 10-Bit 2-Channel 200Ksps A/D Converter

Description

Part Number:	ADC102S021CIMMX	Number Of Bits:	10
Sampling Rate (Per Second):	200k	Number Of Inputs:	2
Number Of A/D Converters:	1	Operating Temperature:	-40°C ~ 85°C
Highlight:	10-Bit Integrated Circuit Chip , 2-Channel A/D Converter , 200Ksps ADC102S021CIMMX

ADC102S021CIMMX Integrated Circuit Chip 2-Channel 50Ksps To 200Ksps 10-Bit A/D Converter

Product Overview Of ADC102S021

The ADC102S021 is a low-power, two-channel CMOS 10-bit analog-to-digital converter with a high-speed serial interface. Unlike conventional ADCs specified at a single sample rate, the ADC102S021 is fully specified over a sample rate range of 50 ksps to 200 ksps. Based on a successive-approximation register architecture with an internal track-and-hold circuit, it can be configured to accept one or two input signals at inputs IN1 and IN2.

Specifications Of ADC102S021

Parameter	Value
Resolution	10 bit
Number of Channels	2 Channel
Interface Type	SPI
Sampling Rate	200 kS/s
Input Type	Single-Ended
Architecture	SAR
Analogue Supply Voltage	2.7 V to 5.25 V
Digital Supply Voltage	2.7 V to 5.25 V
SNR - Signal to Noise Ratio	61.8 dB
Operating Temperature Range	-40°C to +85°C
DNL - Differential Nonlinearity	0.4 LSB
Gain Error	0.7 LSB
INL - Integral Nonlinearity	-0.4 LSB, +0.3 LSB
Number of Converters	1 Converter
Power Consumption	1.94 mW
SINAD - Signal to Noise and Distortion Ratio	61.8 dB
Supply Voltage Range	3.3 V to 5 V
Type	S/H ADC
Unit Weight	140 mg

Key Features Of ADC102S021

Specified over a range of sample rates (50 ksps to 200 ksps)
Two input channels with flexible configuration
Variable power management capabilities
Single power supply with 2.7V - 5.25V range
DNL: ± 0.13 LSB (typical)
INL: ± 0.13 LSB (typical)
SNR: 61.8 dB (typical)
Low power consumption: 1.94mW at 3V, 6.9mW at 5V (typical)

Applications Of ADC102S021

Portable Systems
Remote Data Acquisition
Instrumentation and Control Systems
