TPS92630QPWPRQ1 Automotive Three-Channel Linear LED Driver IC With 150mA Output

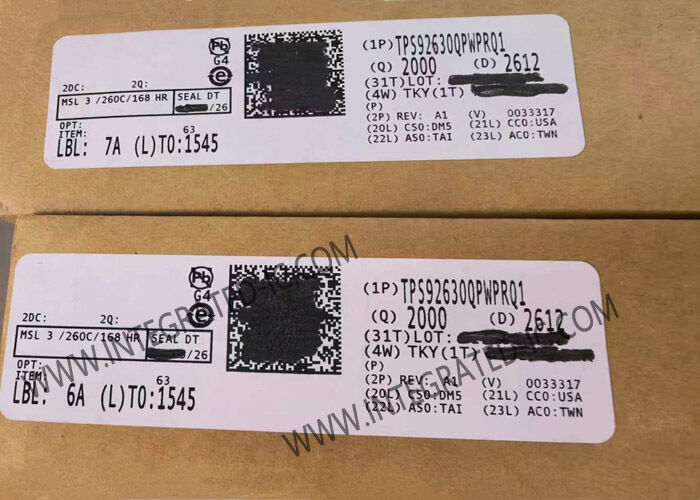

Large Image : TPS92630QPWPRQ1 Automotive Three-Channel Linear LED Driver IC With 150mA Output

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	TPS92630QPWPRQ1

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	HTSSOP-16
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union

Contact Now

TPS92630QPWPRQ1 Automotive Three-Channel Linear LED Driver IC With 150mA Output

Description

Part Number:	TPS92630QPWPRQ1	Number Of Outputs:	3
Voltage - Output:	4V ~ 75V	Current - Output / Channel:	150mA
Dimming:	Analog, PWM	Operating Temperature:	-40°C ~ 125°C (TA)
Highlight:	Three-Channel Linear LED Driver IC , Automotive LED Driver IC , 150mA Output LED Driver IC

TPS92630 Integrated Circuit Chip Automotive Three-Channel Linear LED Driver HTSSOP-16

Product Description Of TPS92630

TPS92630 is a three-channel linear LED driver with analog and PWM dimming control. Its full-diagnostic and built-in protection capabilities make it a suitable choice for variable-intensity LED lighting applications up to the medium-power range.

Specifications Of TPS92630

Product Category	LED Lighting Driver ICs
Number of Outputs	3 Output
Topology	Linear
Output Current	150 mA
Package / Case	HTSSOP-16
Supply Voltage - Max	40 V
Supply Voltage - Min	5 V
Output Voltage	4 V to 75 V
Minimum Operating Temperature	-40℃
Maximum Operating Temperature	+125℃
Features	PWM Dimming, Open LED Protection
Input Voltage	5 V to 40 V

Key Features Of TPS92630

3-Ch. LED Driver With Analog and PWM Dimming
Wide Input-Voltage Range: 5 V-40 V
Adjustable Constant Output Current Set by Reference Resistor
Max. Current: 150 mA per Channel
Max. Current: 450 mA in Parallel Operation Mode
Accuracy: ±1.5% per Channel When I(IOUTx) > 30 mA
Accuracy: ±2.5% per Device When I(IOUTx) > 30 mA
Parallel Outputs for Higher Current Using Multiple ICs or Multiple Channels of a Single IC
Low Dropout Voltage
Max. Dropout: 400 mV at 60 mA per Channel
Max. Dropout: 0.9 V at 150 mA per Channel
Independent PWM Dimming per Channel
Open and Shorted LED Detection With Deglitch Timer
LED-String Voltage Feedback per Channel for Single-LED Short Detection
Separate Fault Pin for Single-LED Short Failure
Fault Pin for Open, Short, and Thermal Shutdown Failure Reporting, Allowing Parallel Bus Connection up to 15 Devices
Device Accommodates a Slow Input-Voltage dV/dt (0.5 V/min) With No Issues
Operating Junction Temperature Range -40°C to 150°C
Package: 16-Pin Thermally Enhanced PWP Package (HTSSOP)

Applications Of TPS92630

Daytime Running Light
Position Light
Fog Light
Rear Light
Stop or Taillight
Interior Lighting
