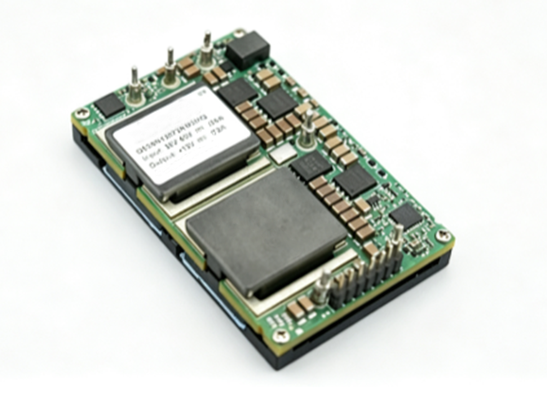

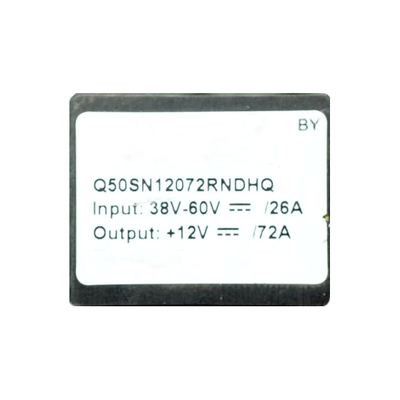

Q50SN12072RNDHQ Integrated Circuit Chip 864W Isolated LLC Resonant IBC Power Module with PMBus Digital Monitoring

Q50SN12072RNDHQ Integrated Circuit Chip 864W Isolated LLC Resonant IBC Power Module with PMBus Digital Monitoring
Q50SN12072RNDHQ Integrated Circuit Chip 864W Isolated LLC Resonant IBC Power Module with PMBus Digital Monitoring Q50SN12072RNDHQ Integrated Circuit Chip 864W Isolated LLC Resonant IBC Power Module with PMBus Digital Monitoring

Large Image :  Q50SN12072RNDHQ Integrated Circuit Chip 864W Isolated LLC Resonant IBC Power Module with PMBus Digital Monitoring

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: Q50SN12072RNDHQ
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: Module
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 10000 Pieces per Day
Contact Now

Q50SN12072RNDHQ Integrated Circuit Chip 864W Isolated LLC Resonant IBC Power Module with PMBus Digital Monitoring

Description
Part Number: Q50SN12072RNDHQ Package: Module
Maximum Input Current: 26A Weighing: 71 G
Total Power: 864 W Dimensions:: 58.48 × 36.94 × 11.56 Mm
Highlight:

864W Integrated Circuit Chip

,

Isolated LLC Resonant Power Module

,

PMBus Digital Monitoring IBC Power Module

Q50SN12072RNDHQ Integrated Circuit Chip 864W Isolated LLC Resonant IBC Power Module
Product Overview Of Q50SN12072

The Q50SN12072 is an industrial-standard 1/4-brick isolated LLC resonant IBC power module, specifically designed for 48V-to-12V power supply applications in high-density servers for AI computing and cloud computing. It accommodates a wide DC bus voltage range of 38-60 V and delivers a stable, high-power 12 V/72 A DC output. Equipped with a comprehensive PMBus digital monitoring system, it is a mainstream power supply component for high-density computing equipment.

Key Specifications Of Q50SN12072
Model Q50SN12072RNDHQ, Q50SN12072
Input Specifications Compatible with wide DC bus voltage range of 38-60 V; maximum input current 26 A
Output Specifications Stable output of 12 V/72 A; total power up to 864 W
Dimensions & Weight 58.48 × 36.94 × 11.56 mm, weighing just 71 g
Key Features Of Q50SN12072
  • Equipped with comprehensive PMBus digital monitoring system
  • Supports capacity expansion via parallel connection of multiple units
  • Capable of withstanding demanding conditions of 24/7, full-load operation in data centers
Applications Of Q50SN12072
  • AI computing and high-density cloud computing servers
  • Rack-mounted servers
  • Network switches
  • Storage arrays and other equipment
