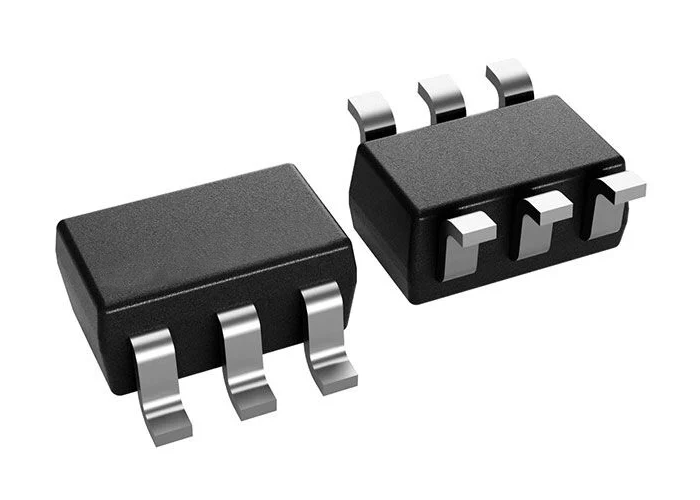

INA213BIDCKR Integrated Circuit Chip 26V Bi-Directional High-Precision Current Sense Amplifier
INA213 is a voltage-output, current-shunt monitor (also called current-sense amplifier) commonly used for overcurrent protection, precision-current measurement for system optimization, or in closed-loop feedback circuits. This series of devices can sense drops across shunts at common-mode voltages from -0.3 V to 26 V, independent of the supply voltage.
Specifications Of INA213
| Number of Channels |
1 Channel |
| GBP - Gain Bandwidth Product |
80 kHz |
| Vcm - Common Mode Voltage |
12 V |
| CMRR - Common Mode Rejection Ratio |
120 dB |
| Ib - Input Bias Current |
28 uA |
| Vos - Input Offset Voltage |
5 uV |
| Supply Voltage - Max |
26 V |
| Supply Voltage - Min |
2.7 V |
| Operating Supply Current |
100 uA |
| Gain Error |
0.02 % |
| Minimum Operating Temperature |
-40 °C |
| Maximum Operating Temperature |
+125 °C |
| Gain V/V |
50 V/V |
| Unit Weight |
28 mg |
Features Of INA213
- Updated format to match new TI layout and flow
- Wide Common-Mode Range: -0.3 V to 26 V
- Offset Voltage: ±35 µV (Maximum, INA210)
- Enables Shunt Drops of 10-mV Full-Scale
- Gain Error (Maximum Over Temperature): ±0.5% (Version C), ±1% (Versions A and B)
- 0.5-µV/°C Offset Drift (Maximum)
- 10-ppm/°C Gain Drift (Maximum)
- Quiescent Current: 100 µA (Maximum)
- SC70 and Thin UQFN Packages: All Models
Applications Of INA213
- Notebook Computers
- Cell Phones
- Telecom Equipment
- Power Management
- Battery Chargers
