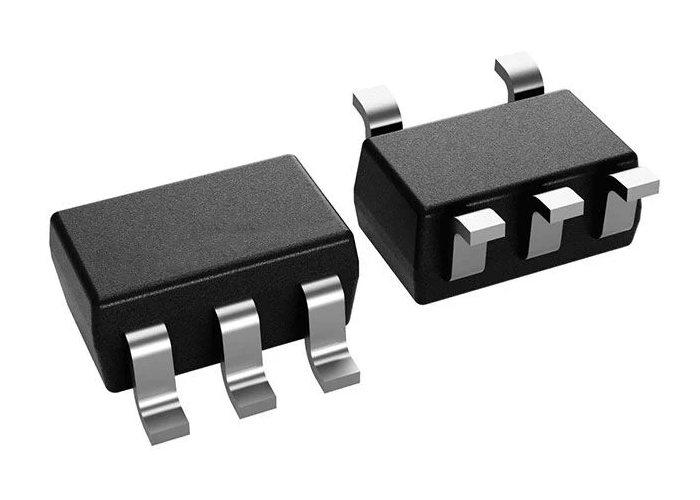

TLV6741DCKR 10MHz Low Noise 5.5V Operational Amplifier Op Amp Integrated Circuit Chip

TLV6741DCKR 10MHz Low Noise 5.5V Operational Amplifier Op Amp Integrated Circuit Chip
TLV6741DCKR 10MHz Low Noise 5.5V Operational Amplifier Op Amp Integrated Circuit Chip

Large Image :  TLV6741DCKR 10MHz Low Noise 5.5V Operational Amplifier Op Amp Integrated Circuit Chip

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: TLV6741DCKR
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: SC-70-5
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 10000 Pieces per Day
Contact Now

TLV6741DCKR 10MHz Low Noise 5.5V Operational Amplifier Op Amp Integrated Circuit Chip

Description
Part Number: TLV6741DCKR Slew Rate: 4.75V/µs
Gain Bandwidth Product: 10 MHz Current - Input Bias: 10 PA
Voltage - Input Offset: 150 µV Current - Supply: 890µA
Highlight:

10MHz Operational Amplifier

,

Low Noise Op Amp

,

5.5V Integrated Circuit Chip

TLV6741DCKR Integrated Circuit Chip Single 5.5V 10MHz Low Noise Operational Amplifier
Product Overview Of TLV6741

TLV6741 is a single-channel general-purpose CMOS operational amplifier that provides a low noise figure of 3.5 nV/√Hz and a wide bandwidth of 10 MHz. The low noise and wide bandwidth make the TLV6741 devices attractive for a variety of precision applications that require a good balance between cost and performance. Additionally, the input bias current of the TLV6741 supports applications with high source impedance.

Specifications Of TLV6741
Number of Channels 1 Channel
GBP - Gain Bandwidth Product 10 MHz
SR - Slew Rate 4.75 V/μs
Vos - Input Offset Voltage 1 mV
Ib - Input Bias Current 10 pA
Supply Voltage - Max 5.5 V
Supply Voltage - Min 2.25 V
Operating Supply Current 850 μA
Output Current per Channel 68 mA
CMRR - Common Mode Rejection Ratio 120 dB
en - Input Voltage Noise Density 5 nV/√Hz
Minimum Operating Temperature -40°C
Maximum Operating Temperature +125°C
In - Input Noise Current Density 26 fA
Ios - Input Offset Current 10 pA
Maximum Dual Supply Voltage 2.75 V
Minimum Dual Supply Voltage 1.125 V
PSRR - Power Supply Rejection Ratio 130 dB
THD plus Noise 0.00035%
Unit Weight 7 mg
Key Features Of TLV6741
  • Low broadband noise: 3.5 nV/√Hz
  • Gain bandwidth: 10 MHz
  • Low input bias current: ±3 pA
  • Low offset voltage: 0.15 mV
  • Low offset voltage drift: ±0.2 μV/°C
  • Rail-to-rail output
  • Unity-gain stable
  • Low IQ: TLV6741: 890 μA/ch
  • Wide supply range: TLV6741: 2.25 V to 5.5 V
  • Robust EMIRR performance: 71 dB at 2.4 GHz
Applications Of TLV6741
  • Solid state drive
  • Wearables (non-medical)
  • Professional audio amplifier (rack mount)
  • Transimpedance Amplifier Circuit
  • Test and measurement
  • Motor drives
  • Pressure transmitter
  • Lab and field instrumentation
  • Bridge amplifier circuit
  • Gaming applications
