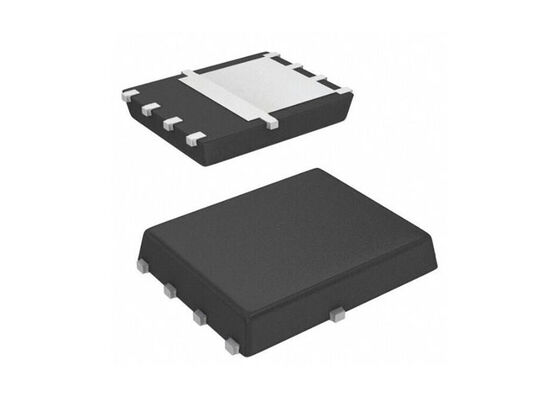

SIR680ADP 80V 125A N-Channel Power MOSFET with TrenchFET Gen IV Technology Integrated Circuit Chip

SIR680ADP 80V 125A N-Channel Power MOSFET with TrenchFET Gen IV Technology Integrated Circuit Chip
SIR680ADP 80V 125A N-Channel Power MOSFET with TrenchFET Gen IV Technology Integrated Circuit Chip

Large Image :  SIR680ADP 80V 125A N-Channel Power MOSFET with TrenchFET Gen IV Technology Integrated Circuit Chip

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: SIR680ADP
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: PowerPAK SO-8
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

SIR680ADP 80V 125A N-Channel Power MOSFET with TrenchFET Gen IV Technology Integrated Circuit Chip

Description
Part Number: SIR680ADP Series: TrenchFET® Gen IV
Drain To Source Voltage (Vdss): 80 V Current - Continuous Drain (Id) @ 25°C: 30.7A (Ta), 125A (Tc)
Gate Charge (Qg) (Max) @ Vgs: 83 NC @ 10 V Power Dissipation (Max): 6.25W (Ta), 104W (Tc)
Highlight:

80V Drain-Source Voltage Power MOSFET

,

125A Continuous Drain Current N-Channel Transistor

,

TrenchFET Gen IV Technology Integrated Circuit Chip

SIR680 Integrated Circuit Chip 80V TrenchFET Gen IV N-Channel Power MOSFET Transistors
Product Description Of SIR680

SIR680 is an N-channel power MOSFET utilizing TrenchFET® Gen IV technology. It is housed in a PowerPAK® SO-8 package and is specifically designed for power conversion applications requiring high efficiency.

Specifications Of SIR680
Parameter Value
Product Category MOSFETs
Technology Si
Mounting Style SMD/SMT
Package / Case PowerPAK-SO-8
Transistor Polarity N-Channel
Number of Channels 1 Channel
Vds - Drain-Source Breakdown Voltage 80 V
Id - Continuous Drain Current 125 A
Rds On - Drain-Source Resistance 2.88 mOhms
Vgs - Gate-Source Voltage -20 V, 20 V
Vgs th - Gate-Source Threshold Voltage 3.5 V
Qg - Gate Charge 43 nC, 55 nC
Minimum Operating Temperature -55℃
Maximum Operating Temperature +150℃
Pd - Power Dissipation 104 W
Key Features Of SIR680
  • TrenchFET® Gen IV power MOSFET
  • Very low RDS - Qg figure-of-merit (FOM)
  • Tuned for the lowest RDS - Qoss FOM
  • 100% Rg and UIS tested
Applications Of SIR680
  • Synchronous rectification
  • Primary side switch
  • DC/DC converters
  • OR-ing
  • Power supplies
  • Motor drive control
  • Battery and load switch
