SIR626LDP 60V N-Channel Power MOSFET with 30.7A Continuous Drain Current and 1.5 mOhm Drain-Source Resistance in PowerPAK SO-8 Package

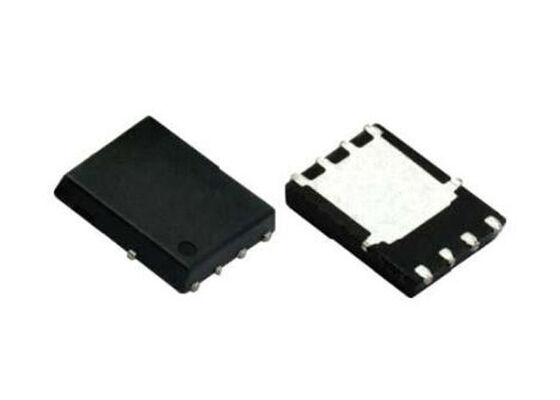

Large Image : SIR626LDP 60V N-Channel Power MOSFET with 30.7A Continuous Drain Current and 1.5 mOhm Drain-Source Resistance in PowerPAK SO-8 Package

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	SIR626LDP

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	PowerPAK SO-8
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union

Contact Now

SIR626LDP 60V N-Channel Power MOSFET with 30.7A Continuous Drain Current and 1.5 mOhm Drain-Source Resistance in PowerPAK SO-8 Package

Description

Part Number:	SIR626LDP	Series:	TrenchFET® Gen IV
Drain To Source Voltage (Vdss):	80 V	Current - Continuous Drain (Id) @ 25°C:	30.7A (Ta), 125A (Tc)
Gate Charge (Qg) (Max) @ Vgs:	83 NC @ 10 V	Power Dissipation (Max):	6.25W (Ta), 104W (Tc)
Highlight:	60V Drain-Source Voltage Power MOSFET , 30.7A Continuous Drain Current MOSFET , 1.5 mOhm Drain-Source Resistance N-Channel Power MOSFET

SIR626 Integrated Circuit Chip 60V TrenchFET Gen IV N-Channel Power MOSFET In PowerPAK SO-8 Package

Product Description Of SIR626

SIR626 is a high-performance 60V N-channel power MOSFET, manufactured using the fourth-generation TrenchFET process and optimized for applications requiring extreme efficiency and high-frequency switching. Its key advantage lies in the combination of an extremely low on-resistance (1.5 mΩ) and optimized gate charge (41 nC), delivering an industry-leading figure of merit (FOM), making it an ideal choice for applications such as power conversion, synchronous rectification and motor drives that demand high efficiency and high power density.

Specifications Of SIR626

Parameter	Value
Product Category	MOSFETs
Technology	Si
Mounting Style	SMD/SMT
Package / Case	PowerPAK-SO-8
Transistor Polarity	N-Channel
Number of Channels	1 Channel
Vds - Drain-Source Breakdown Voltage	60 V
Id - Continuous Drain Current	186 A
Rds On - Drain-Source Resistance	1.5 mOhms
Vgs - Gate-Source Voltage	-20 V, 20 V
Vgs th - Gate-Source Threshold Voltage	1 V
Qg - Gate Charge	135 nC
Minimum Operating Temperature	-55℃
Maximum Operating Temperature	+150℃
Pd - Power Dissipation	104 W
Channel Mode	Enhancement
Configuration	Single
Fall Time	10 ns
Forward Transconductance - Min	140 S
Product Type	MOSFETs
Rise Time	64 ns
Transistor Type	1 N-Channel
Typical Turn-Off Delay Time	45 ns
Typical Turn-On Delay Time	17 ns

Key Features Of SIR626

TrenchFET® Gen IV power MOSFET
Very low RDS - Qg figure-of-merit (FOM)
Tuned for the lowest RDS - Qoss FOM
100% Rg and UIS tested

Applications Of SIR626

Synchronous rectification
Primary side switch
DC/DC converter
Solar micro inverter
Motor drive switch
Battery and load switch
Industrial
