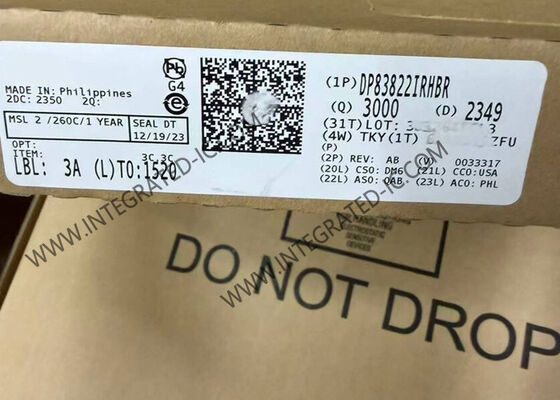

DP83822IRHBR Ethernet IC Low-Power Robust 10/100-Mbps Ethernet PHY Transceiver With 16KV ESD
DP83822IRHBR Ethernet IC Low-Power Robust 10/100-Mbps Ethernet PHY Transceiver With 16KV ESD
Description
Part Number:
DP83822IRHBR
Applications:
Ethernet
Voltage - Supply:
1.71V ~ 3.45V
Interface:
MII, RMII
DP83822IRHBR Ethernet IC Low-Power Robust 10/100-Mbps Ethernet PHY Transceiver With 16KV ESD
Description
Designed for harsh industrial environments, the DP83822 is an ultra-robust, low-power, single-port 10/100Mbps Ethernet PHY. The DP83822 provides all physical layer functions needed to transmit and receive data over standard twisted-pair cables, or connect to an external fiber optic transceiver. Additionally, the DP83822 provides flexibility to connect to a MAC through a standard MII, RMII, or RGMII interface.
Specifications
10BASE-TE, 100BASE-FX/TX
1 Transceiver
10 Mb/s, 100 Mb/s
MII, RGMII, RMII
1.8 V
3.45 V
- 40 C
+ 85 C
Unit Weight:
170 mg
Features
Ultra-robust 10/100Mbs PHY
IEC 61000-4-2 ESD: ±8KV contact discharge
IEC 61000-4-4 EFT: Class A at 4KV
CISPR 22 conducted emissions: Class B
CISPR 22 radiated emissions: Class B
Operating temperature: -40℃ to 125℃
MAC interfaces: RGMII/RMII/MII
Programmable MII/RMII/RGMII termination impedance
IEEE 802.3u compliant: 100BASE-FX, 100BASE-TX and 10BASE-Te
Flexible supply options
Low power single supply options
1.8V AVD < 120mW
3.3V AVD < 220mW
Available I/O voltages: 3.3V/2.5V/1.8V
Power saving features
Energy efficient Ethernet (EEE) IEEE 802.3az
WoL (Wake-on-LAN) support with magic packet detection
Programmable energy savings modes
Start of frame detect for IEEE 1588 time stamp
Diagnostic tools: Cable diagnostics, built-in self-test (BIST), loopback, rapid link-down detection
Auto-crossover in force modes
Applications
Motor drives
Factory automation, robotics and motion control
Grid infrastructure
Building automation
Industrial Ethernet fieldbus
Real Time Industrial Ethernet Applications such as ProfiNET®
