MAX3243EIPWR Integrated Circuit Chip 500kbps Multichannel RS-232 Line Driver/Receiver with ESD Protection

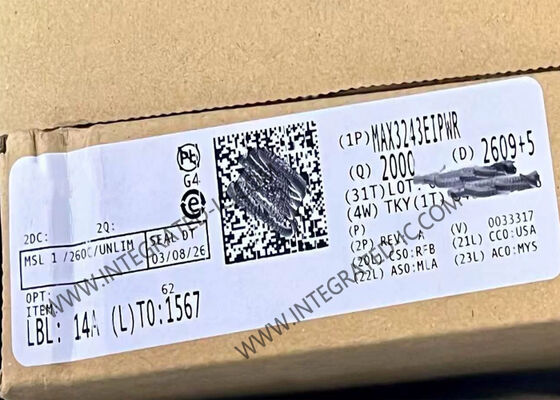

Large Image : MAX3243EIPWR Integrated Circuit Chip 500kbps Multichannel RS-232 Line Driver/Receiver with ESD Protection

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	MAX3243EIPWR

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	TSSOP-28
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union

Contact Now

MAX3243EIPWR Integrated Circuit Chip 500kbps Multichannel RS-232 Line Driver/Receiver with ESD Protection

Description

Part Number:	MAX3243EIPWR	Protocol:	RS232
Receiver Hysteresis:	500 MV	Data Rate:	500kbps
Voltage - Supply:	3V ~ 5.5V	Operating Temperature:	-40°C ~ 85°C
Highlight:	500kbps Integrated Circuit Chip , Multichannel RS-232 Interface IC , ESD Protection MAX3243EIPWR

MAX3243 Integrated Circuit Chip 500kbps Multichannel RS-232 Line Driver/Receiver TSSOP-28

Product Description Of MAX3243

The MAX3243 is a multichannel 500kbps RS-232 line driver/receiver with ±15-kV IEC-ESD protection. This integrated circuit features three line drivers, five line receivers, and a dual charge-pump circuit. It includes an always-active noninverting output (ROUT2B), enabling applications using the ring indicator to transmit data while the device is powered down.

Specifications Of MAX3243

Product Category	RS-232 Interface IC
Package / Case	TSSOP-28
Function	Transceiver
Data Rate	500 kb/s
Number of Drivers	3 Driver
Number of Receivers	5 Receiver
Duplex	Full Duplex
Supply Voltage - Max	5.5 V
Supply Voltage - Min	3 V
Mounting Style	SMD/SMT
Operating Supply Current	1 mA
Minimum Operating Temperature	-40℃
Maximum Operating Temperature	+85℃
ESD Protection	15 kV

Key Features Of MAX3243

Single-chip and single-supply interface for IBM™ PC/AT™ serial port
ESD Protection for RS-232 bus pins
Operates with 3-V to 5.5-V VCC supply
Always-active noninverting receiver output (ROUT2B)
Designed to transmit at a data rate up to 500 kbit/s
Low standby current: 1 µA typical
External capacitors: 4 × 0.1 µF
Accepts 5-V logic input with 3.3-V supply
Designed to be interchangeable with MAX3243E
Serial-Mouse Driveability
Auto-powerdown feature to disable driver outputs when no valid RS-232 signal is sensed

Applications Of MAX3243

Battery powered systems
Wired Networking
Data center and enterprise computing
Battery-powered systems
Notebooks
Laptops
Palmtop PCs
Hand-held equipment

Related Part Numbers

MAX3243EIPWR, MAX3243EIPW, MAX3243EIP, MAX3243EI, MAX3243E, MAX3243
