IRFP3206 60V 120A 280W Power MOSFET Transistor N-Channel StrongIRFET™ TO-247-3

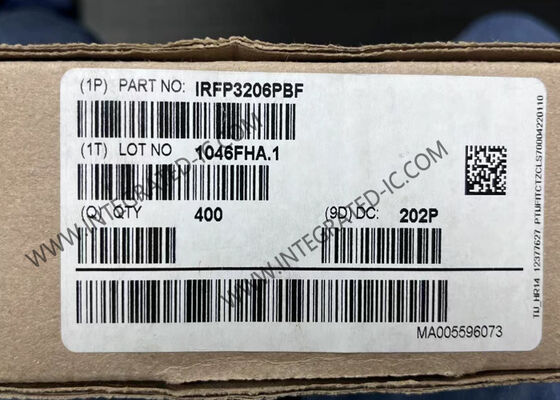

Large Image : IRFP3206 60V 120A 280W Power MOSFET Transistor N-Channel StrongIRFET™ TO-247-3

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	IRFP3206

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	PG-TO247-3
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union

Contact Now

IRFP3206 60V 120A 280W Power MOSFET Transistor N-Channel StrongIRFET™ TO-247-3

Description

Part Number:	IRFP3206	FET Type:	N-Channel
Drain To Source Voltage (Vdss):	60 V	Current - Continuous Drain (Id) @ 25°C:	120A (Tc)
Gate Charge (Qg) (Max) @ Vgs:	170 NC @ 10 V	Power Dissipation (Max):	280W (Tc)
Highlight:	60V Power MOSFET , 120A Transistor , 280W Integrated Circuit Chip

IRFP3206 Integrated Circuit Chip 60V Single N-Channel StrongIRFET™ Power MOSFET Transistor PG-TO247-3

Product Overview Of IRFP3206

IRFP3206 is a 60V Single N-Channel StrongIRFET™ Power MOSFET Transistor in a TO-247 package. The StrongIRFET™ power MOSFET family is optimized for low RDS(on) and high current capability.

IRFP3206 is ideal for low frequency applications requiring performance and ruggedness. The comprehensive portfolio addresses a broad range of applications including DC motors, battery management systems, inverters, and DC-DC converters.

Specifications Of IRFP3206

Parameter	Value
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	120A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	3mOhm @ 75A, 10V
Vgs(th) (Max) @ Id	4V @ 150µA
Gate Charge (Qg) (Max) @ Vgs	170 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	6540 pF @ 50 V
Power Dissipation (Max)	280W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-247AC
Package / Case	TO-247-3

Key Features Of IRFP3206

Optimized for broadest availability
Product qualification according to JEDEC
Industry standard through-hole power
High-current rating

Applications Of IRFP3206

Domestic robots
High Efficiency Synchronous Rectification in SMPS
Uninterruptible Power Supply
High Speed Power Switching
Hard Switched and High Frequency Circuits
