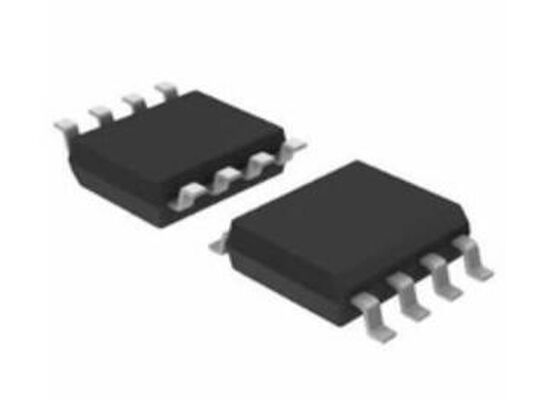

GT24C02A-2GLI Memory IC Chip 2K Bits Serial EEPROM Memory with Two-Wire Serial Interface and Wide-voltage Operation 1.7V to 5.5V

GT24C02 is an industrial standard electrically erasable programmable read only memory (EEPROM) device that utilizes the industrial standard 2-wire interface for communications. The GT24C02 contains a memory array of 2K bits (256x8), which is organized in 16-byte per page. The EEPROM operates in a wide voltage range from 1.7V to 5.5V, which fits most applications. The product provides low-power operations and low standby current.

• Memory organization: 2Kb (256 x 8)
• Interface: Two-Wire Serial Interface
• Wide-voltage Operation - VCC: 1.7V to 5.5V
• Speed: 400 KHz (1.7V) and 1 MHz (2.5V~5.5V)
• Package: SOIC-8

• Two-Wire Serial Interface, I2C™ Compatible
• Bi-directional data transfer protocol
• Wide-voltage Operation - VCC = 1.7V to 5.5V
• Speed: 400 KHz (1.7V) and 1 MHz (2.5V~5.5V)
• Standby current (max.): 1 μA, 1.7V
• Read current (max.): 0.5 mA, 5.5V
• Write current (max.): 0.5 mA, 5.5V
• Hardware Data Protection - Write Protect Pin
• Sequential & Random Read Features
• Memory organization: 2Kb (256 x 8)
• Page Size: 16 bytes
• Page write mode - Partial page writes allowed
• Self timed write cycle: 5 ms (max.)
• Noise immunity on inputs
