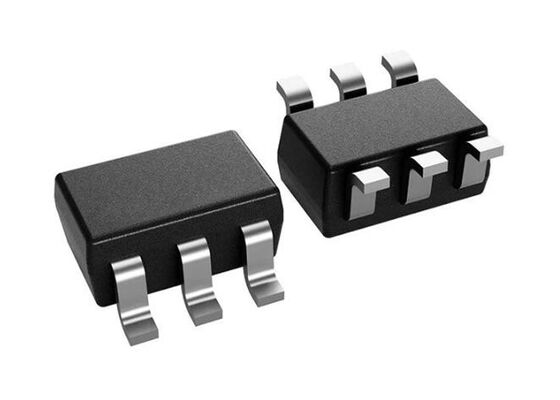

INA210AIDCKR 26V Bi-Directional High-Precision Current Sense Amplifier with 14 kHz Gain Bandwidth

INA210AIDCKR 26V Bi-Directional High-Precision Current Sense Amplifier with 14 kHz Gain Bandwidth
INA210AIDCKR 26V Bi-Directional High-Precision Current Sense Amplifier with 14 kHz Gain Bandwidth

Large Image :  INA210AIDCKR 26V Bi-Directional High-Precision Current Sense Amplifier with 14 kHz Gain Bandwidth

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: INA210AIDCKR
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: SOT-SC70-6
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Supply Ability: 10000 Pieces per Day
Contact Now

INA210AIDCKR 26V Bi-Directional High-Precision Current Sense Amplifier with 14 kHz Gain Bandwidth

Description
Part Number: INA210AIDCKR Slew Rate: 0.4V/µs
Gain Bandwidth Product: 14 KHz Current - Input Bias: 28 µA
Current - Supply: 65µA Operating Temperature: -40°C ~ 125°C
Highlight:

26V Bi-Directional Current Sense Amplifier

,

High-Precision Current Sense Amplifier

,

14 kHz Gain Bandwidth Integrated Circuit Chip

INA210 Integrated Circuit Chip 26V Bi-Directional High-Precision Current Sense Amplifier
Product Description Of INA210

The INA210 is a voltage-output current-shunt monitor (current-sense amplifier) designed for overcurrent protection, precision current measurement for system optimization, and closed-loop feedback circuits. This device can sense voltage drops across shunts at common-mode voltages from -0.3 V to 26 V, independent of the supply voltage.

Specification Of INA210
Product Category Current Sense Amplifiers
Number of Channels 1 Channel
GBP - Gain Bandwidth Product 14 kHz
Vcm - Common Mode Voltage 12 V
CMRR - Common Mode Rejection Ratio 140 dB
Ib - Input Bias Current 28 uA
Vos - Input Offset Voltage 550 nV
Supply Voltage - Max 26 V
Supply Voltage - Min 2.7 V
Operating Supply Current 100 uA
Gain Error 0.02 %
Minimum Operating Temperature -40℃
Maximum Operating Temperature +125℃
Mounting Style SMD/SMT
Package / Case SC-70-6
Amplifier Type Low-Side/High-Side Current Sense Amplifier
Gain 200 V/V
Gain V/V 200 V/V
Features Of INA210
  • Wide Common-Mode Range: -0.3 V to 26 V
  • Offset Voltage: ±35 µV (Maximum) (Enables Shunt Drops of 10-mV Full-Scale)
  • Accuracy:
    • Gain Error (Maximum Over Temperature): ±0.5% (Version C), ±1% (Versions A and B)
    • 0.5-µV/°C Offset Drift (Maximum)
    • 10-ppm/°C Gain Drift (Maximum)
  • Choice of Gains: 200 V/V
  • Quiescent Current: 100 µA (Maximum)
Applications Of INA210
  • Notebook Computers
  • Cell Phones
  • Telecom Equipment
  • Power Management
  • Battery Chargers
