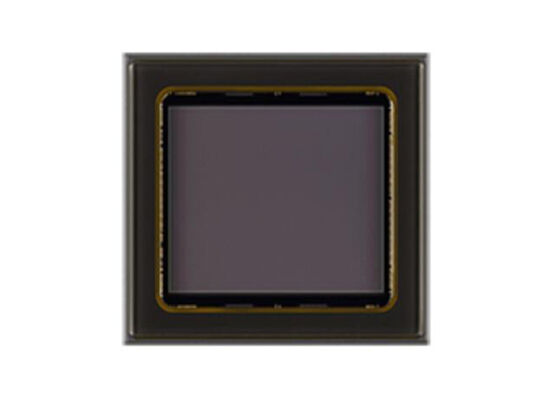

IMX420LLJ Sensor IC 1.1-Inch CMOS Solid-State Image Sensor with 7.1 Megapixels and Global Exposure Mode for Monochrome Cameras

IMX420LLJ Sensor IC 1.1-Inch CMOS Solid-State Image Sensor with 7.1 Megapixels and Global Exposure Mode for Monochrome Cameras
IMX420LLJ Sensor IC 1.1-Inch CMOS Solid-State Image Sensor with 7.1 Megapixels and Global Exposure Mode for Monochrome Cameras

Large Image :  IMX420LLJ Sensor IC 1.1-Inch CMOS Solid-State Image Sensor with 7.1 Megapixels and Global Exposure Mode for Monochrome Cameras

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: IMX420LLJ
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: SMD
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

IMX420LLJ Sensor IC 1.1-Inch CMOS Solid-State Image Sensor with 7.1 Megapixels and Global Exposure Mode for Monochrome Cameras

Description
Part Number: IMX420LLJ Resolution(Mega­pixels): 7.1
Effective Pixels (H X V): 3216 X 2208 Aspect Ratio: 16:11
Pixel Size (V = H): 4.5µm Filters: Mono
Highlight:

7.1 Megapixels Sensor IC

,

Global Exposure Mode CMOS Solid-State Image Sensor

,

Low Power Consumption Monochrome Image Sensor

IMX420 Sensor IC 1.1-Inch CMOS Solid-State Image Sensor For Monochrome Cameras
Product Overview Of IMX420

IMX420 is an active-pixel CMOS solid-state image sensor with a diagonal of 17.6 mm (1.1 inches) and an effective pixel count of 7.1 million. The sensor utilises a global exposure mode with variable charge integration time and is characterised by low power consumption, high sensitivity, low dark current and low PLS, making it suitable for use in factory automation cameras and intelligent transport system cameras.

Specifications Of IMX420
Technology Pregius
Resolution 7.1 Megapixels
Effective Pixels (H × V) 3216 × 2208
Image Size (Type) 1.1-inch
Aspect Ratio 16:11
Pixel Size 4.5µm
Max Frame Rate 207 frame/s
Output Interface SLVS-EC/SLVS
Filters Mono
Key Features Of IMX420
  • 1.1-inch active-pixel CMOS sensor
  • Built-in adjustable timing circuitry, H-driver, V-driver and serial communication circuitry
  • Global exposure mode
  • Readout modes: All-pixel scan mode, Vertical/horizontal 1/2 subsampling mode, 2×2 vertical FD binning mode, ROI mode, Vertical/horizontal - normal/flipped readout mode
  • Readout speed: Maximum frame rate in all-pixel scan mode: 8-bit: 207.1 frames per second, 10-bit: 172.0 frames per second, 12-bit: 134.5 frames per second
  • 8/10/12-bit A/D converter
  • CDS/PGA functions: 0-24 dB analogue gain (0.1 dB steps), 24.1-48 dB analogue gain (24 dB) + digital gain (0.1-24 dB) (0.1 dB steps)
  • I/O interfaces: SLVS (switchable between 4 and 8 channels) output (594/297 Mbps per channel), SLVS-EC (switchable between 1, 2, 4 and 8 channels) output (2.376/1.188 Gbps per channel)
  • Recommended lens aperture: f/2.8 or wider (near end)
Applications Of IMX420
  • FA Cameras (Factory Automation)
  • ITS Cameras (Intelligent Transport Systems)
