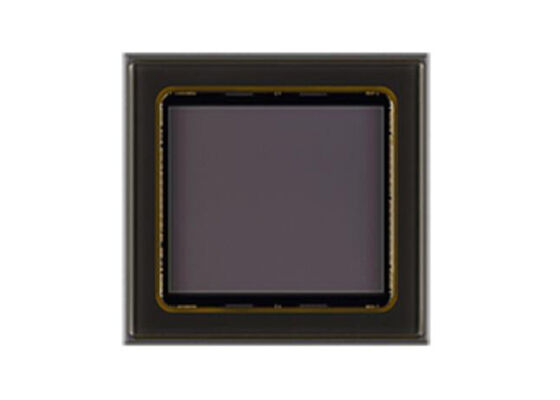

IMX264LQR Sensor IC 5.0M Global Shutter CMOS Image Sensor with High Sensitivity and Low Noise for Colour Cameras

IMX264 is a high-performance color CMOS image sensor belonging to the Pregius series. Thanks to its global shutter, high resolution and excellent sensitivity, it is widely used in the field of industrial imaging.

• Global shutter, distortion-free imaging: The use of global shutter technology ensures that all pixels are exposed simultaneously, preventing distortions such as the 'jelly effect' when capturing high-speed moving objects.
• High Sensitivity and Low Noise: Features high sensitivity (typical value of 1146 mV), low dark current and low PLS (parasitic light sensitivity), delivering clear images even in low-light conditions.
• High Resolution and High Frame Rate: With 5.07 million effective pixels, the resolution reaches 2464 × 2056. At full resolution, the frame rate can reach 35.7 fps. Through the region-of-interest (ROI) mode, the frame rate can be further increased; for example, it can reach 87.6 fps at a resolution of 1224 × 1024.
• Rich Feature Set:
  • Multiple readout modes: Supports full-pixel scan, ROI (Region of Interest) and other modes
  • Flexible control: Built-in timing adjustment circuitry, H/V drivers and serial communication circuitry
  • High dynamic range: Dynamic range of up to 73.6 dB
  • Low-power design: Utilizes a three-channel power supply (3.3 V for analogue, 1.2 V for digital, 1.8 V for interfaces), offering low power consumption
