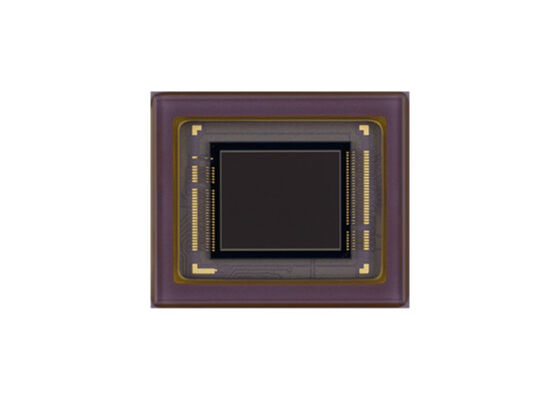

IMX785-AMR1 Sensor IC CMOS Solid-State Image Sensor with Square Pixel Array 5.12 M Effective Pixels for Low Power Monochrome Cameras

IMX785-AMR1 Sensor IC CMOS Solid-State Image Sensor with Square Pixel Array 5.12 M Effective Pixels for Low Power Monochrome Cameras
IMX785-AMR1 Sensor IC CMOS Solid-State Image Sensor with Square Pixel Array 5.12 M Effective Pixels for Low Power Monochrome Cameras

Large Image :  IMX785-AMR1 Sensor IC CMOS Solid-State Image Sensor with Square Pixel Array 5.12 M Effective Pixels for Low Power Monochrome Cameras

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: IMX785-AMR1
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: LGA-132
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

IMX785-AMR1 Sensor IC CMOS Solid-State Image Sensor with Square Pixel Array 5.12 M Effective Pixels for Low Power Monochrome Cameras

Description
Part Number: IMX785-AMR1 Package: LGA-132
Unit Cell Size: 2.9 μm (H) × 2.9 μm (V) Image Size: Diagonal 9.46 Mm (Type 1/1.7)
Highlight:

Square Pixel Array Sensor IC

,

5.12 M Effective Pixels CMOS Solid-State Image Sensor

,

Low Power Consumption Monochrome Camera Sensor

IMX785-AMR1 Sensor IC CMOS Solid-State Image Sensor With Square Pixel For Monochrome Cameras
Product Overview Of IMX785
IMX785 is a diagonal 9.46 mm (Type 1/1.7) CMOS active pixel type solid-state image sensor with a square pixel array and 5.12 M effective pixels. This chip operates with analog 3.3 V, digital 1.1 V, and interface 1.8 V triple power supply, and features low power consumption. It achieves high sensitivity, low dark current and no smear, and includes an electronic shutter with variable charge-integration time.
Key Features Of IMX785
  • CMOS active pixel type dots
  • Built-in timing adjustment circuit, H/V driver and serial communication circuit
  • Input frequency: 24 MHz to 27 MHz / 37.125 MHz / 72 MHz / 74.25 MHz
  • Number of recommended recording pixels: 2592 (H) × 1944 (V) approx. 5.03M pixels
  • Readout modes: All-pixel scan mode, Window cropping mode, Horizontal/Vertical direction Normal/Inverted readout mode
  • Maximum frame rate in All-pixel scan mode: 12 bit: 60 frame/s, 10 bit: 90 frame/s
  • High dynamic range (HDR) function: Digital overlap HDR, Clear HDR, Hybrid HDR
  • Synchronizing sensors function
  • Variable-speed shutter function (resolution 2H units)
  • Conversion gain switching (HCG Mode / LCG Mode)
  • CDS / PGA function: 0 dB to 30 dB: Analog Gain 30 dB (step pitch 0.3 dB), 30.3 dB to 72 dB: Analog Gain 30 dB + Digital Gain 0.3 dB to 42 dB (step pitch 0.3 dB)
  • Output interface: CSI-2 serial data output (2 Lane / 4 Lane), RAW10 / RAW12 / RAW16 (Clear HDR, Hybrid HDR) output
  • Communication interface: I2C / I3C
  • AR coating on cover glass (Both sides)
Application Of IMX785
Security cameras
