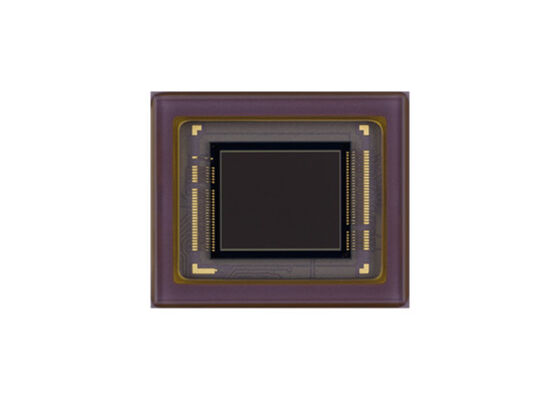

IMX335LQN Sensor IC CMOS Solid-State Image Sensor with 5.14 M Effective Pixels and Type 1/2.8 Image Size in BGA-88 Package

IMX335 is a diagonal 6.52 mm (Type 1/2.8) CMOS active pixel type solid-state image sensor with a square pixel array and 5.14 M effective pixels. This chip operates with analog 2.9 V, digital 1.2 V, and interface 1.8 V triple power supply, and has low power consumption. High sensitivity, low dark current and no smear are achieved through the adoption of R, G and B primary color mosaic filters. This chip features an electronic shutter with variable charge-integration time.

• CMOS active pixel type dots
• Built-in timing adjustment circuit, H/V driver and serial communication circuit
• Input frequency: 6 to 27 MHz / 37.125 MHz / 74.25 MHz
• Number of recommended recording pixels: 2592 (H) × 1944 (V) approx. 5.04 M pixels
• Readout modes: All-pixel scan mode, Horizontal/Vertical 2/2-line binning mode, Window cropping mode, Vertical/Horizontal direction-normal/inverted readout mode
• Maximum frame rate in All-pixel scan mode: 60 frame/s at 2592×1944 with A/D 10-bit
• High dynamic range (HDR) function with multiple exposure HDR and digital overlap HDR
• Variable-speed shutter function (resolution 1H units)
• 10-bit / 12-bit A/D converter
• CDS / PGA function with 0 dB to 72 dB gain range
• Supports I/O: CSI-2 serial data output (2 Lane / 4 Lane, RAW10 / RAW12 output)
• Recommended exit pupil distance: -30 mm to -∞

• Surveillance cameras
• FA cameras
• Industrial cameras
