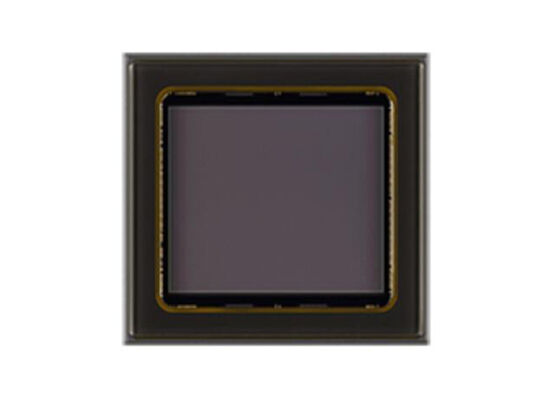

IMX265LLR Sensor IC 1/1.8-Inch Monochrome Global Shutter CMOS Image Sensor with 55frame/s

IMX265LLR Sensor IC 1/1.8-Inch Monochrome Global Shutter CMOS Image Sensor with 55frame/s
IMX265LLR Sensor IC 1/1.8-Inch Monochrome Global Shutter CMOS Image Sensor with 55frame/s

Large Image :  IMX265LLR Sensor IC 1/1.8-Inch Monochrome Global Shutter CMOS Image Sensor with 55frame/s

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: IMX265LLR
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: SMD
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

IMX265LLR Sensor IC 1/1.8-Inch Monochrome Global Shutter CMOS Image Sensor with 55frame/s

Description
Part Number: IMX265LLR Resolution(Mega­pixels): 3.1
Effective Pixels (H X V): 2064 X 1544 Aspect Ratio: 4:3
Pixel Size (V = H): 3.45µm Max Frame Rate: 55frame/s
Highlight:

1/1.8-Inch CMOS Image Sensor

,

Monochrome Global Shutter Sensor

,

55frame/s IMX265LLR Sensor IC

IMX265 Sensor IC 1/1.8-Inch Pregius Monochrome Global Shutter CMOS Image Sensor
Product Overview Of IMX265

IMX265 is a compact, high-performance monochrome image sensor that combines high resolution, a global shutter and high sensitivity, making it an ideal choice for space-constrained industrial imaging, intelligent transport and machine vision applications.

Specifications Of IMX265
Technology Pregius
Resolution (Megapixels) 3.1
Effective Pixels (H x V) 2064 x 1544
Image Size (Type) 1/1.8
Aspect Ratio 4:3
Pixel Size (V = H) 3.45µm
Max Frame Rate 55 frame/s
Output Interface sub LVDS Serial
Filters Monochrome
Key Features Of IMX265
  • Global shutter, distortion-free imaging: The use of global shutter technology ensures that all pixels are exposed simultaneously, preventing distortions such as the 'jelly effect' when capturing fast-moving objects.
  • High sensitivity and low noise: Achieves high sensitivity (915 mV typical) and low noise characteristics. Its 3.45 μm pixel size delivers clear images even in low-light conditions.
  • High Resolution and High Frame Rate: Features 3.19 million effective pixels. At full resolution, the frame rate reaches 55.6 fps. Through ROI mode, frame rate can reach 115.1 fps at 1024 × 768 resolution.
  • Rich Feature Set: Multiple readout modes, flexible control with built-in timing adjustment circuitry, H/V drivers and serial communication circuitry, and external trigger support for easy system integration.
